Description

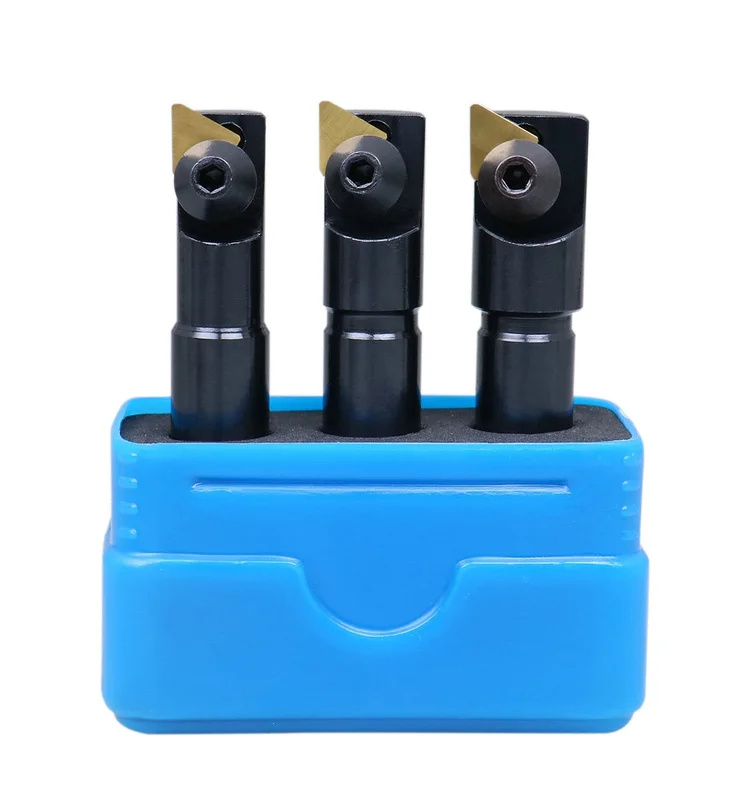

3 PCS 1/2″ Shank Miniature Indexable End Mill Set, #0046-0510
- 1/2″ Shank
- 3″ Overall length
- Each set contains 1 each of 1/2″, 9/16″ & 5/8″ cutter with insert
- Use standard TPG22 insert
- Comes with inserts installed
- Locking screw: SM5 x 8
- Supplied in a fitted case
Recommended RPM
| Item No. | Materials | Hardness(HB) | Cutting parameter | ||
| V(ft /min) | f(inch/Z) | ae | |||
| 0046-0510 | Low-carbon Steel | 180 | 60-120 | 0.2(0.05-0.1) | 0.5D |
| High-carbon Steel, Alloy Steel | 180-280 | 60-120 | 0.2(0.05-0.1) | 0.5D | |
| Tool Steel | 280-350 | 60-90 | 0.2(0.05-0.1) | 0.5D |
V= Cutting Speed (ft/min)
f= Feed per tooth (inch/Z)
ae=Cutting width
**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
