Description

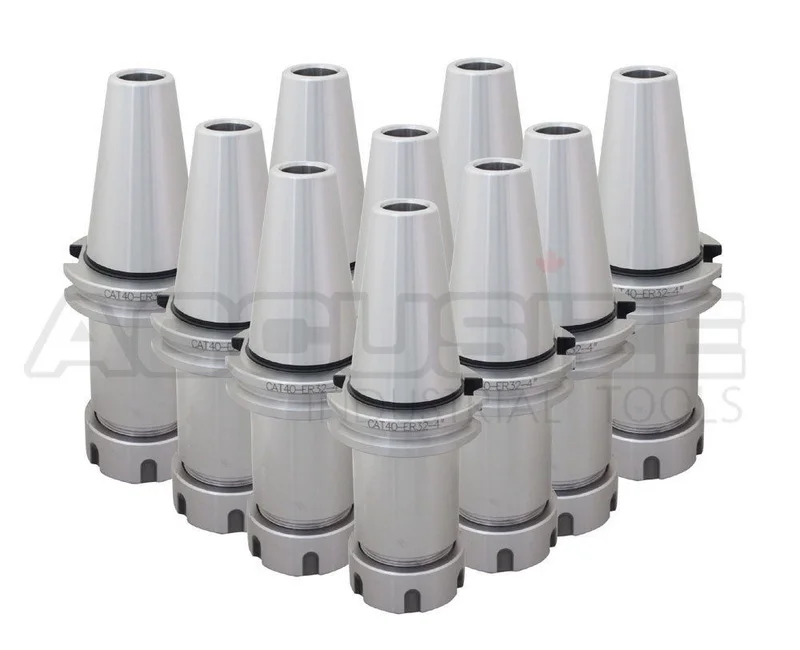

10 Pcs CAT40-ER32 Chucks, V-Flange Collet Chuck w/ 4″ Gage Length, #1601-0020×10
- CAT40-ER32 10 ps Chucks of #1601-0020
- For ER32 Collet
- Made of alloy forged steel, Hardened to HRC 52-56
- Draw Bar Thread 5/8-11
- Taper: CAT40
- Collet Series: ER32; Projection Length: 4”
- Range: 3/32″-25/32″
- All critical surface are precision ground
- Concentricity is less than 0.0001” from taper to end mill pocket
- 8000 RPM
- TIR: 0.00012″
- Packed in Fitted Box
Design, Assemble, and Dissemble of ER Collet Nut
| Eccentric Design, ISO 15488:2003(E) | Assemble | Inspection | Dissemble |
| The inside of the ER collet nut is intentionally designed like off-centering to help mount the ER collet much easier. It is in accordance with the requirements listed in ISO 15488:2003(E). If it is made symmetrical, the ER collet with the diameter larger than the inside size of the collet nut cannot be installed. | Insert the ER collet into the nut at an angle. Lock it onto the eccentric groove of the collet nut and push it in. (Insert the cutter right after the step, before connect it to the holder/chuck/arbor.) | Inspect the RPM of the ER collet, ER collet nut, ER collet holder/chuck/arbor, etc. | Take out the tool bit, press the end of the ER collet until the collet off the position. Push it out of the nut. (after take out the nut out of the holder.) |
