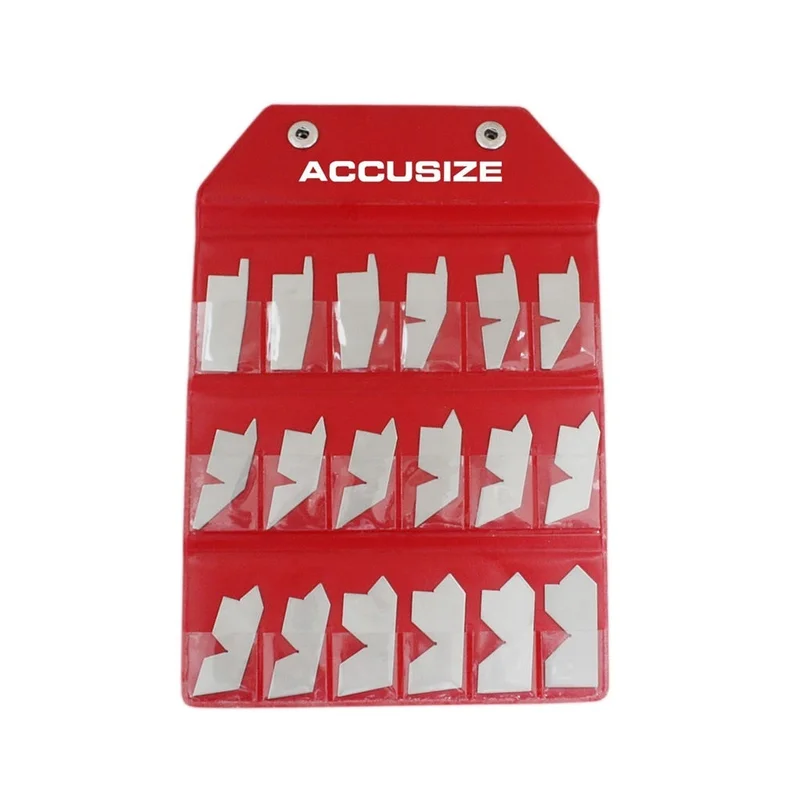

18 Piece/Set Angle Gage Set Angle Gages, #3602-5050
- Manufactured from stainless steel, satin finish,
- 18 individual gages for easy use.
- Eight gaging surfaces per gage.
- Precision finished edges for accurate checking.
- Each gage checks primary, 1/2 primary and supplementary angles.
- Quick and accurate inspection of angles and I.D. or O.D. chamfers in or out of the machine.
- Positioning of lathe tools for chamfers.
- Inspecting angles on ground tools and cutters
- Fast set-ups and fixture of workpieces.
- Eliminates time-consuming measuring set-ups.
- Indispensable, for every inspector, toolmaker, machinist, layout and draftsman.
- Complete with fitted case.
- Accuracy: +/-0.5 Degree
Parameters:
| Type A | TypeB |
|
|
| Primary Angle | 1/2Primary Angle | Supplementary Angle | Type |
| 5 | 230′ | 175 | A |
| 10 | 5 | 170 | A |
| 15 | 730′ | 165 | A |
| 20 | 10 | 160 | B |
| 25 | 1230′ | 155 | B |
| 30 | 15 | 150 | B |
| 35 | 1730′ | 145 | B |
| 40 | 20 | 140 | B |
| 45 | 2230′ | 135 | B |
| 50 | 25 | 130 | B |
| 55 | 2730′ | 125 | B |
| 60 | 30 | 120 | B |
| 65 | 3230′ | 115 | B |
| 70 | 35 | 110 | B |
| 75 | 3730′ | 105 | B |
| 80 | 40 | 100 | B |
| 85 | 4230′ | 95 | B |
| 90 | 45 | 90 | B |
