Description

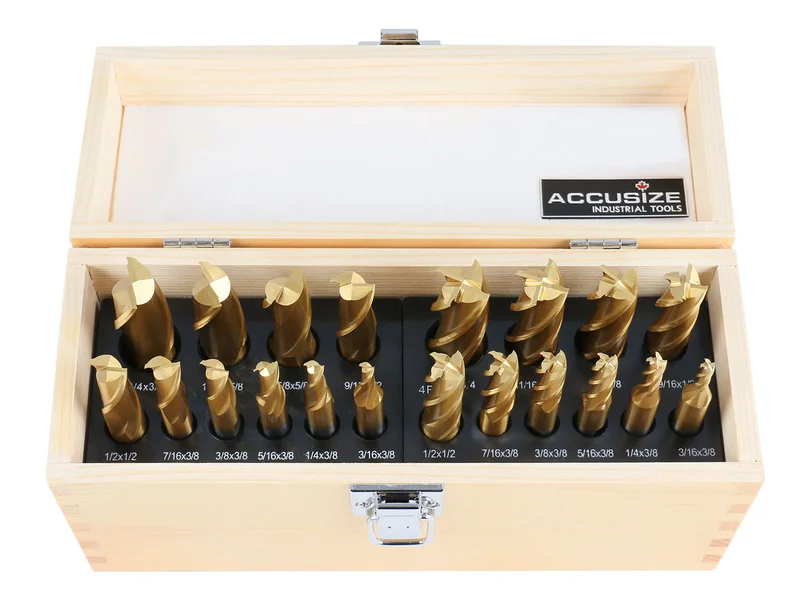

20 Ps HSS Tin Coated End Mills Set, 2 + 4 Flute,size from 3/16″ up to 3/4″Ground #1810-0100
- H.S.S.
- Straight Shank
- One of each size in both 2 & 4 flute
With 3/8″ shank: 3/16″, 1/4″, 5/16″, 3/8″, 7/16″
With 1/2″ shank: 1/2″, 9/16″
With 5/8″ shank: 5/8″, 11/16″
With 3/4″ shank: 3/4″
| Flute | Dia. | Shank Dia. | Flute Length | OAL |
| 2 | 3/16″ | 3/8″ | 7/16″ | 2-5/16″ |
| 2 | 1/4″ | 3/8″ | 1/2″ | 2-5/16″ |
| 2 | 5/16″ | 3/8″ | 9/16″ | 2-5/16″ |
| 2 | 3/8″ | 3/8″ | 9/16″ | 2-5/16″ |
| 2 | 7/16″ | 3/8″ | 13/16″ | 2-1/2″ |
| 2 | 1/2″ | 1/2″ | 1″ | 3″ |
| 2 | 9/16″ | 1/2″ | 1-1/8″ | 3-1/8″ |
| 2 | 5/8″ | 5/8″ | 1-5/16″ | 3-7/16″ |
| 2 | 11/16″ | 5/8″ | 1-5/16″ | 3-7/16″ |
| 2 | 3/4″ | 3/4″ | 1-5/16″ | 3-9/16″ |
| 4 | 3/16″ | 3/8″ | 1/2″ | 2-3/8″ |
| 4 | 1/4″ | 3/8″ | 5/8″ | 2-7/16″ |
| 4 | 5/16″ | 3/8″ | 3/4″ | 2-1/2″ |
| 4 | 3/8″ | 3/8″ | 3/4″ | 2-1/2″ |
| 4 | 7/16″ | 3/8″ | 1″ | 2-11/16″ |
| 4 | 1/2″ | 1/2″ | 1-1/4″ | 3-1/4″ |
| 4 | 9/16″ | 1/2″ | 1-3/8″ | 3-3/8″ |
| 4 | 5/8″ | 5/8″ | 1-5/8″ | 3-3/4″ |
| 4 | 11/16″ | 5/8″ | 1-5/8″ | 3-3/4″ |
| 4 | 3/4″ | 3/4″ | 1-5/8″ | 3-3/8″ |
Increase tool life and gain higher productivity.
Peripheral Milling, Ramping Milling, Helical Milling, Slotting Milling and Plunging Milling
