Description

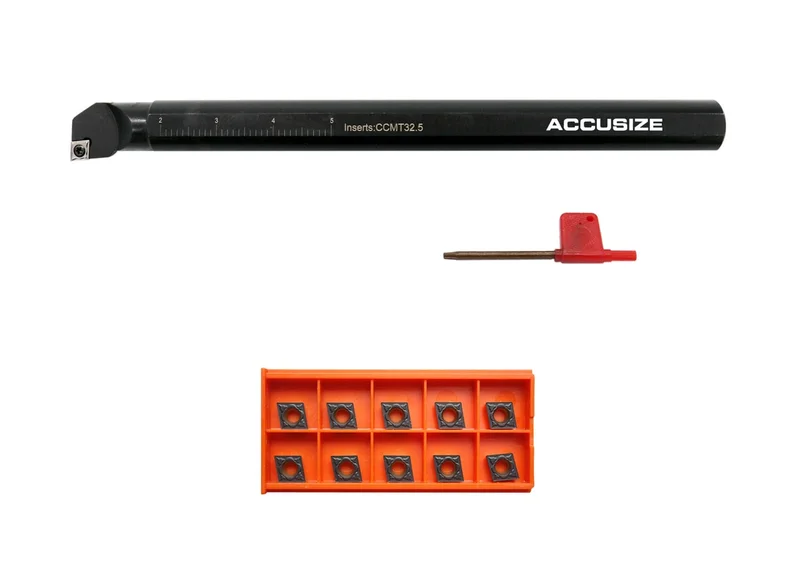

1” x 12” RH SCLCR Indexable Boring Bar Holder with CCMT32.51 or CCMT32.52 Inserts, #P252-S408
- Shank Diameter: 1″
- Overall Length: 12″
- Using 80 degree carbide CCMT inserts negative 5 degree end and side cutting angle
- Boring from light roughing to finishing in small bores
- Insert CCMT 32.51 Included & Key Included
- Accepts Inserts CCMT 32.5
-
- (CVD Coated CCMT32.51-MD, SKU:2200-1014) – Included
- (CVD Coated CCMT32.52-MD, SKU:2200-1016) – Not included
- S16T-SCLCR4
- Profiling bar for semi-finishing and finishing operations
- Bar hardness approximately 45HRC
- Extreme fine gloss finish
- Negative 5 degree end & side cutting angle
- Positive 80 degree diamond CCMT inserts
Carbide Inserts, CVD Coating, CCMT 32.51 / 32.52, Black/Yellow, 10 ps/box
- Insert Style: CCMT
- 7 degree
- Insert Grade: BPS101
- Chip Breaker: MD
- Material: Carbide
- Coating: CVD Al2O3 TICN
- Machining Parts Material: Steel
- Machining Process: Finish
Product features
- BPS101 Black/Yellow Coating Grade
- CVD coated carbide grade, wear-resistance materials coated on the gradient sintered substrate which has both good hardness, toughness
- Can bear high temperatures
- For steel and steel castings finishing to roughing processing
- Continue cutting to light interrupted cutting
- Machining of gray and ductile iron at low to medium cutting speed
- For hard materials continuous cutting and light interrupted cutting from finishing to roughing
- Wet and dry processing
- Combination of fibrous TICN and fine grained Al2O3 increases abrasion resistance and anti-chipping
- Preferred choice chip breaker on General Purpose Finishing
Features of chipbreaker
- For medium-duty turning with broad capability for steel, stainless steel, grey and nodular cast-iron
- Operations: turning, facing and profiling
- Advantages: all-round, reliable with problem-free machining
- Limitations: depth of cut and feed, risk of overloading the cutting edge
- Components typically: axles, shafts, hubs, gears, etc.
