Description

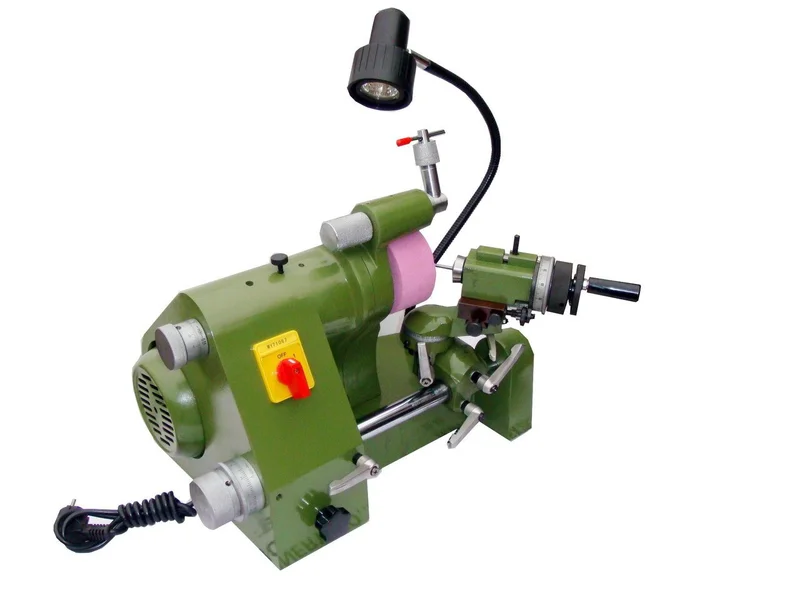

Universal Cutter Grinder with Standard Accessories, 110v, 60hz
- It is the finest, top-of-the-line, and the most complete sharpener available at a surprisingly low cost!
- For grinding HSS and solid carbide end mills, drills, tool bits as well as engraving cutters of various shapes, angles and diameters.
- There is a fine feed adjustable on the grinding spindle.
- Available for 1/16″-1″ R8 collet.
- This universal cutter grinder can grind the size of the drill from 3mm-18mm ( 1/8″ – 11/16″).
- can grinding end mills size from 2-25mm
- can grind the lathe turning tools size from 20X20 mm
| Technical Data | |
| Max. Collet Capacity | 1″ |
| Max. Grinding Dia. | 4″ |
| Taper Angle | 0180 |
| Relief Angle | 0-45 |
| Negative Angle | 0-26 |
| Grinding Spindle | 5200r.p.m. |
| Cup Grinding Wheel | 4″x2″x3/4″ |
| Motor Volt | 110V/60Hz |
| Net Weight | 45kgs |
| Standard Accessories(1) | |
| Wheel dresser with diamond | 1pc |
| R8 collet 1/2″, 1/4″, 1/8″, 3/8″, 5/16″ | 5pcs |
| Drive belt | 1pc |
| Lamp | 1pc |
| Tools | 1pc |
| Magnifier(5x) | 1pc |
| Operating information | 1pc |
| Standard Accessories(2) | ||
| Twist Drill Grinding Attachment (1pc) | End Mill Grinding Attachment (1pc) | Lathe Tool GrindingAttachment (1pc) |
Technical Note:
-
For grinding HSS and carbide engraving cutters as well as single-lip or multiple-lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters.
-
The universal index head is provided at 24 positions so that any particular angle of shape can be obtained. Free 3600 or 100 rotation is allowed for grinding end mills, twist drills, and lathe tools.
-
Only need to replace the attachments to the index head without any complex setup.
| Extra Accessories | |
| Item | Description |
| 2301-1007-1 | Diamond grinding wheel #320 |
| 2301-1007-2 | Diamond grinding wheel #600 |
| 2301-1007-3 | Regular grinding wheel PA80# |
| 2301-1007-4 | Belt |
| 2301-1007-5 | end mills grinding accessories |
| 2301-1007-6 | lathe tool grinding accessories |
| 2301-1007-7 | Drills grinding accessories |
