Description

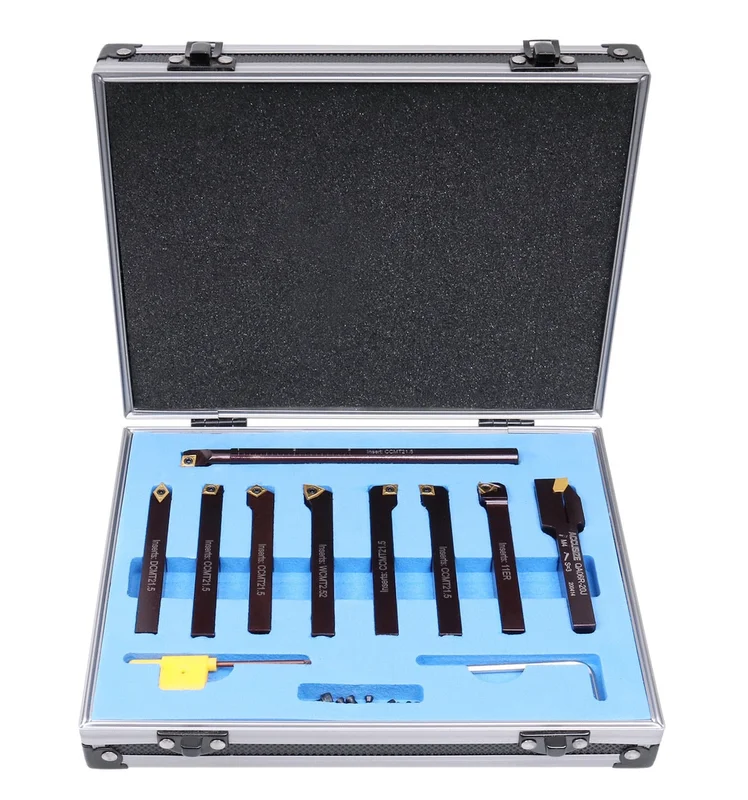

3/8″ 9 Piece Lathe Tool Set, Indexable Carbide Turning Tools and Boring Bar, 2988-0038
- The material of the holder is upgraded, more rigid, with better cutting stability and better resistance against wearing.
- Each tool holder comes with a C6 TiN-coated carbide insert for cutting steel with a positive rake cutting angle and a built-in chip breaker great for general purpose cutting action.
- Smooth finish on each turning tool holder marked with tool holder style and shank size.
- Insert screw and wrench included.
- 9pc indexable turning tool holder and indexable boring bar
- 9pc TiN Coated C6 carbide insert
- 9pc hex screw.
- Free keys
- Aluminum fitting case.
** For purchasing additional inserts, you may find the correspondingInsert SKUbelow:
- Threading range of 11ER A60 = 48-16 TPI / 0.5-1.5 mm
| Name | Tool Holder | Rake Angle | Insert | Insert SKU |
Insert Screw (SKU) |
Wrench | Mini Bore | Overall Length |
| Cutoff | QA06R-20J | 0 | GTN-2 | TiN Coated, 2403-2003 |
GB70-85/M4x10 (0047-4010) |
S3 | – | 3-1/2” |
| External Threading | SER0375J11 | 0 | 11ER A60 | TiN Coated, 2652-0015 |
M2.5×8 (0046-2508) |
T8 | ||
| Turning Tools | SCLCR06-2J | 95 | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5×6 (0046-2506) |
|||
| SCLCL06-2J | 95 | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5×6 (0046-2506) |
||||
| SDNCN06-2J | 62.5 | DCMT21.5 | TiN Coated, 2104-1010 |
M2.5×6 (0046-2506) |
||||
| SWGCR06-2J | 90 | WCMT2.51 | TiN Coated, 2139-1020 |
M3x6 |
||||
| SCDCR06-2J | 45 | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5×6 (0046-2506) |
||||
| SCBCR06-2J | 75 | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5×6 (0046-2506) |
||||
| Boring Bar | S06M-SCLCR2 | 95 | CCMT21.5 |
TiN Coated, 2100-1008 OR CVD Coated, 2200-1008 |
M2.5×6 (0046-2506) |
1/2″ | 6″ |
Specification of the QA06R-20J cut-off holder:
Shank Size: 3/8″
Tool Holder: QA06R-20J
Tool Holder Size (H x B): 1/2 x 3/8″
OAL (L): 3-1/2″
Insert: GTN-2
Insert Screw: M4 x 10
F: 0.508″
T: 0.630″
W: 0.079″
Maximum Depth: 0.630″
Download Application and Accessory Guide of 2988-0038
