Description
Features:
- The material of the holder is upgraded, more rigid, with better cutting stability and better resistance against wearing
- Smooth finish on each turning tool holder marked with tool holder style and shank size

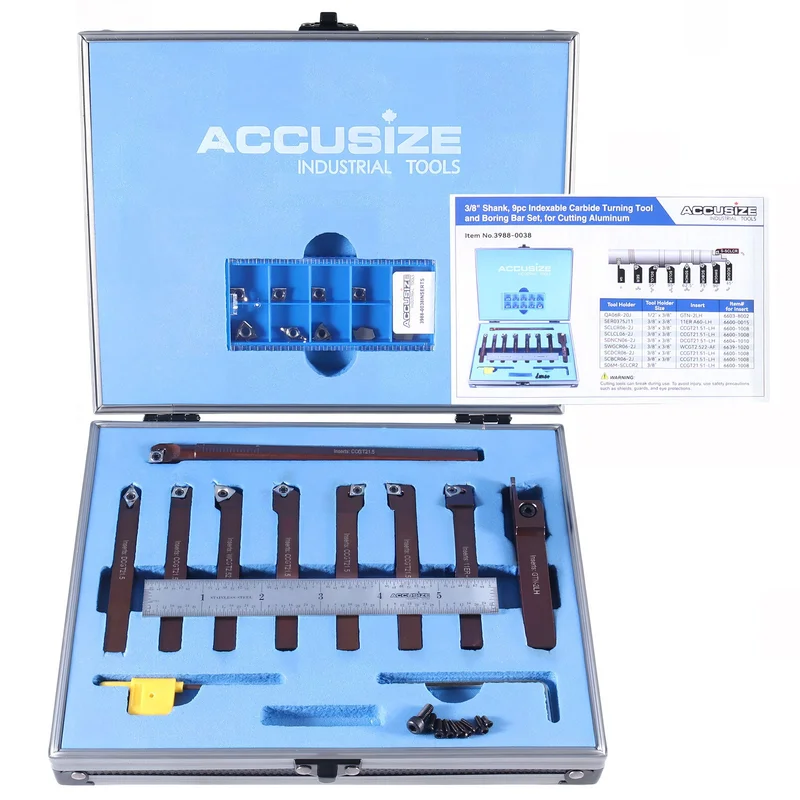

Set includes:
- 9pcs indexable turning tool holders
- 9pcs carbide inserts for cutting aluminum
- Additional 10pcs carbide inserts forcutting aluminum
- 2pcs GTN-2LH
- 1pc 11ER A60-LH
- 5pcs CCGT21.51-LH
- 1pc DCGT21.51-LH
- 1pc WCGT2.522-AF
- 9pcs extra screws
- 1pc stainless steel rigid ruler, 6″ 4R
- Free keys
- In a fitted aluminum case
** For purchasing additional inserts, you may find the correspondingInsert SKUbelow:
- Threading range of 11ER A60-LH = 48-16 TPI / 0.5-1.5 mm
| Name | Tool Holder | Tool Holder Size | Rake Angle | Insert | Insert SKU |
Insert Screw (SKU) |
Wrench | Mini Bore | Overall Length |
| Cutoff | QA06R-20J | 1/2×3/8″ | 0 | GTN-2LH | 6603-8002 |
GB70-85/M4x10 (0047-4010) |
S3 | – | 3-1/2” |
| External Threading | SER0375J11 | 3/8×3/8″ | 0 | 11ER A60-LH | 6600-0015 |
M2.5×8 (0046-2508) |
T8 | ||
| Turning Tools | SCLCR06-2J | 95 | CCGT21.51-LH |
6600-1008 |
M2.5×6 (0046-2506) |
||||
| SCLCL06-2J | 95 | CCGT21.51-LH |
6600-1008 |
M2.5×6 (0046-2506) |
|||||
| SDNCN06-2J | 62.5 | DCGT21.51-LH | 6604-1010 |
M2.5×6 (0046-2506) |
|||||
|
SWGCR06-2J |
90 |
WCGT2.522-AF |
6639-1020 |
M3x6 |
|||||
| SCDCR06-2J | 45 | CCGT21.51-LH |
6600-1008 |
M2.5×6 (0046-2506) |
|||||
| SCBCR06-2J | 75 | CCGT21.51-LH |
6600-1008 |
M2.5×6 (0046-2506) |
|||||
| Boring Bar | S06M-SCLCR2 | 3/8″ | 95 | CCGT21.51-LH |
6600-1008 |
M2.5×6 (0046-2506) |
1/2″ | 6″ |
Specification of the QA06R-20J cut-off holder:
Shank Size: 3/8″
Tool Holder: QA06R-20J
Tool Holder Size (H x B): 1/2 x 3/8″
OAL (L): 3-1/2″
Insert: GTN-2
Insert Screw: M4 x 10
F: 0.508″
T: 0.630″
W: 0.079″
Maximum Depth: 0.630″
