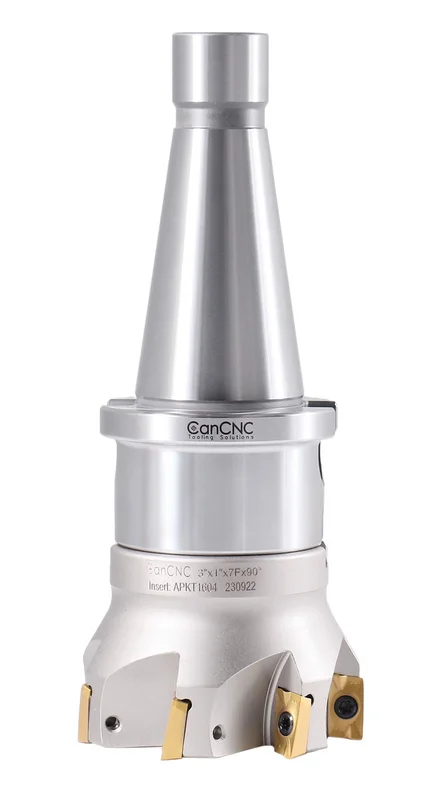

3″ 90 Square Shoulder Indexable Face Mill with an NMTB40 Face Mill Holder

Description

3 inchCutting Diameter, 7 Flute, 90 Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with an NMTB40Face Mill Holder, #NMTB-4518

3″ x 1″ arbor hole, 7 flute with 7 APKT1604 inserts 90 Square Shoulder Indexable Face Mill with APKT Insert

• 90 cutting angle
• Screw down inserts
• Radial rake angle: -10
• Axial rake angle: +7
• All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, cast irons and aluminum alloys.
  • Face Milling
  • Helical Milling
  • Ramping Milling
  • Slot Milling
  • Side Milling
  • Pocketing
• Fitted with 10 positive rectangular insert allow high depth of cut and feed per tooth
• Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
• Cutting Diameter: 3″
• Arbor Hole d: 1″
• Overall Length: 2.00″
• ap: 0.551:
• No. of Inserts: 7
• Screw: M4 x 8.4
• Inserts: APKT1604

NMTB 40 Shell End Face Mill Holder

• Drawbar Thread: 5/8″-11
