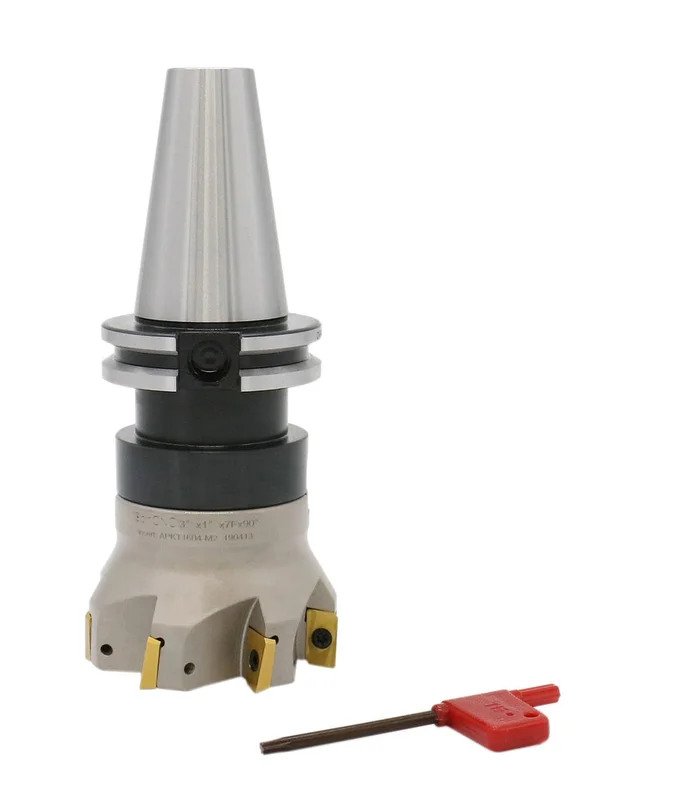

3″ Dia. 7 FLute, 90 Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with Caterpillar V-Flange CAT-40 Face Mill Holder, #7104-4518

Description

3″ Dia. 7 FLute, 90 Square Shoulder Indexable Face Mill with 7pc APKT1604 Inserts Installed with Caterpillar V-Flange CAT-40 Face Mill Holder, #7104-4518

3″ x 1″ arbor hole, 7 flute with 7 APKT1604 inserts 90 Square Shoulder Indexable Face Mill with APKT Insert

• 90 cutting angle
• Screw down inserts
• Radial rake angle: -10
• Axial rake angle: +7
• All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, cast irons and aluminum alloys.
  • Face Milling
  • Helical Milling
  • Ramping Milling
  • Slot Milling
  • Side Milling
  • Pocketing
• Fitted with 10 positive rectangular insert allow high depth of cut and feed per tooth
• Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)
• Cutting Diameter: 3″
• Arbor Hole d: 1″
• Overall Length: 2.00″
• ap: 0.551:
• No. of Inserts: 7
• Screw: M4 x 8.4
• Inserts: APKT1604

CAT40 1” Diameter Caterpillar V-Flange Shell End Mill Holder

• All “V” Flange Tooling is interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers.
• Packed in Fitted Box
• D: 1”
• L: 2-1/16”
• L1: 5-7/16”
• A:11/16”
• B: 2-11/64”
