Description

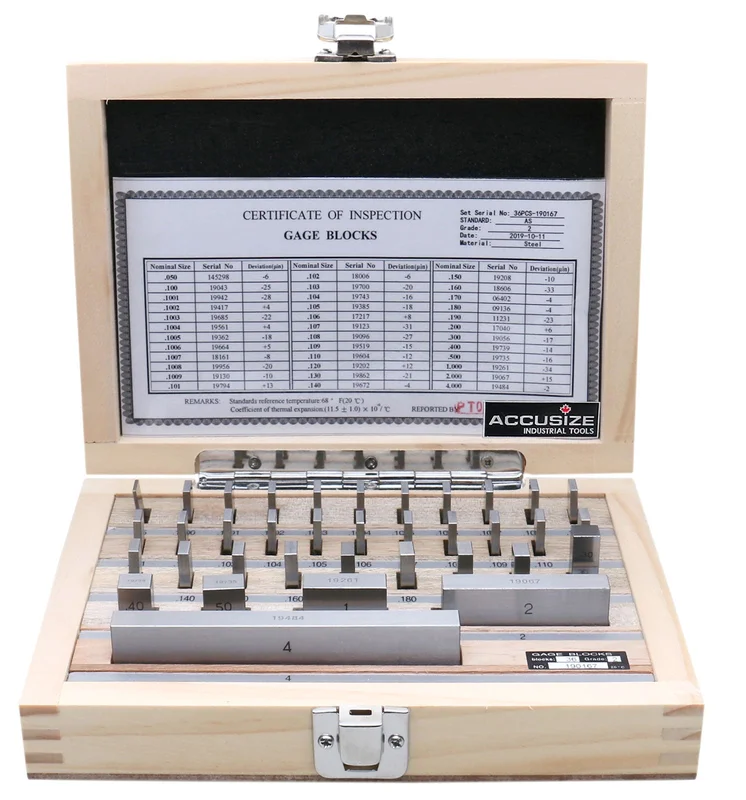

36PCS STEEL GAGE BLOCK SET, GRADE AS-2 ASME B89.1.9-2002, WITH MFGS CERTIFICATE, #0036-6001
- Manufactured under carefully controlled conditions allowing for the highest degrees of accuracy when used at a temperature of 68F (20C).
- All gage block sets are assigned serial numbers and are accompanied with a certificate of inspection listing the deviation for each block
- Each gage block set meets or exceeds federal specification ASME B89.1.9-2002
- All gage block sets are made to special standard to resist corrosion and defacement
- Capstone degrees of accuracy
- Hardened to HRC 64.
- Each set comes with a fitted wooden case.
New Grade ASME B89.1.9–2002
| Normal Size | Tolerances(in Millionths of an inch) | |||
| AS-0 | AS-1 | AS-2 | Economy | |
| Thru 0.050″ | 6 | 12 | 18 | 50 |
| Thru 0.400″ | 5 | 8 | 18 | 50 |
| Thru 1″ | 6 | 12 | 24 | 50 |
| Thru 2″ | 8 | 16 | 32 | 50 |
| Thru 3″ | 10 | 20 | 40 | 50 |
| Thru 4″ | 12 | 24 | 48 | 50 |
Specification
| Stepping | Nominal Dimensions | NO.of Block |
| —– | 0.050″ | 1 |
| 0.0001″ | 0.1001″ to 0.1009″ | 9 |
| 0.001″ | 0.101″ to 0.109″ | 9 |
| 0.01″ | 0.110″ to 0.190″ | 9 |
| 0.10″ | 0.100″ to 0.500″ | 5 |
| —– | 1″ | 1 |
| —– | 2″ | 1 |
| —– | 4″ | 1 |
