Description

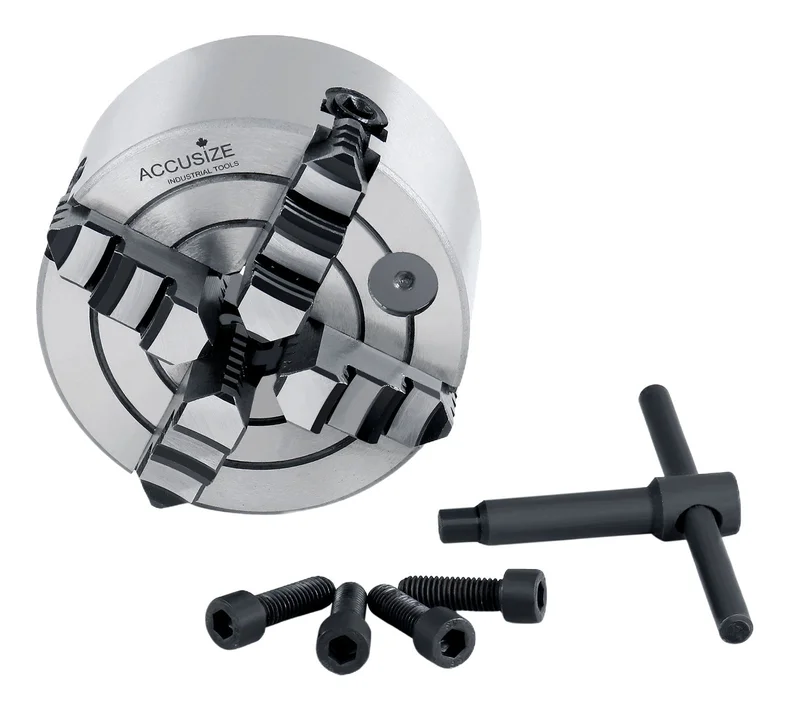

4-Jaw Independent Lathe Chucks, Plain Back
- Plain Back, semi-steel body.
- These chucks have one set of reversible jaws.
- Jaws are hardened and ground.
- Independent jaw movement, suitable for machining all kinds of special-shaped work pieces.
- 1 set of setting screws.
- 1 hexagon wrench.
| Item | Diameter | Center Hole | D1 | D2 | D3 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) |
| 0557-0003 | 3″/80mm | 0.866″ | 2.165″ | 2.598″ | 0.866″ | 2.323″ | 1.654″ | 0.138″ | 4-M6 | 25 | 4000 |
| 0557-0004 | 4″/100mm | 0.984″ | 2.835″ | 3.307″ | 0.984″ | 3.031″ | 2.126″ | 0.177″ | 4-M8 | 30 | 3500 |
| 0557-0006 | 6″/160mm | 1.772″ | 2.559″ | 3.740″ | 1.772″ | 3.661″ | 2.559″ | 0.197″ | 4-M10 | 70 | 2500 |
| 0557-0008 | 8″/200mm | 2.165″ | 2.953″ | 3.740″ | 2.165″ | 4.213″ | 2.953″ | 0.236″ | 4-M10 | 100 | 2000 |
| 0557-0010 | 10″/250mm | 2.953″ | 4.331″ | 5.118″ | 2.953″ | 4.724″ | 3.150″ | 0.236″ | 4-M12 | 150 | 1600 |
