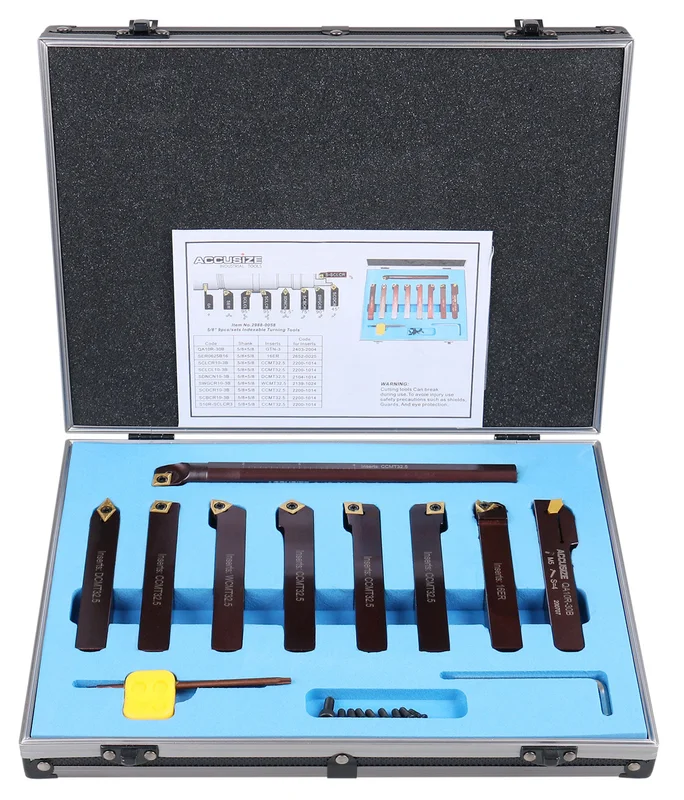

5/8″ 9 Ps Lathe Tool Set, Indexable Carbide Turning Tools and Boring Bar, 2988-0058
The 5/8″ 9-piece indexable carbide lathe toolset is a general-purpose machine toolset that can help machinists finish multiple lathe operations. It can do turning, facing, parting off, grooving, sanding, threading cutting, boring, etc. Withthe correct deployment of the lathe, toolpost (quick change tool post), and tool holders, the indexable lathe tooling set can work on the lathes with 6″ to 15″ swing over bed.
- Facing
- Taper turning
- Contour turning
- Form turning
- Chamfering
- Cutoff
- Thread turning
- Boring
- Parting off
- External grooving
- Face grooving
Beyond, all carbide inserts are C6-grade TiN coated, which enables all the inserts to have much longer tool life than uncoated inserts. All the inserts are with multiple cutting edges.When a cutting edge of any inserts becomes dull, you just need to rotate the insert in the holder to use the sharp edge.
Furthermore, we carry the replacements of all the inserts with different radii and coating material. E.g., all the CCMT inserts of this toolset are CCMT32.51 and TiN coated. We also carry the CCMT 32.51 inserts with CVD coating (SKU: 2200-1014). The CCMT32.52 CVD Coating inserts (SKU: 2200-1016)are available as well.
In addition, we also carry the quick change tool holder and quick change tool post set for this toolset.
- Black oxide smooth finish on each turning tool holder marked with tool holder style and shank size.
- Each tool holder comes with a C6 TiN coated carbide insert for cutting steel with a positive rake cutting angle and built-in chip breaker great for general purpose cutting action.
- Insert screw and wrench included.
- 9pc indexable turning tool holder and indexable boring bar
- 9pc TiN Coated C6 carbide insert
- 9pc hex screw.
- 1pc hexagon key.
- Aluminum fitting case.
** For purchasing additional inserts, you may find the correspondingInsert SKUbelow:
- Threading range of 16ER AG60 = 48-8 TPI / 0.5-3.0 mm
| Name | Code | Rake Angle | Insert | Insert Coated,SKU | Insert Scews | Holder Size(WxH) | Overall Length | Mini Bore | Wrench |
| Cutoff | QA10R-30B | 0 | GTN-3 | TiN Coated, 2403-2004 |
GB70-85/ M512 (0046-5012) |
5/85/8″ | 4-1/2″ |
– |
S3 |
| External Threading | SER0625B16 | 0 | 16ER AG60 | TiN Coated, 2652-0025 |
M3.511 |
T15/S3.5 | |||
| Turning Tools | SCLCR10-3B | 95 | CCMT32.5 | CVD Coated, 2200-1014 |
M412 (0046-4012) |
||||
| SCLCL10-3B | 95 | ||||||||
| SDNCN10-3B | 62.5 | DCMT32.5 | TiN Coated, 2104-1014 | ||||||
| SWGCR10-3B | 90 | WCMT32.5 | TiN Coated, 2139-1024 | ||||||
| SCDCR10-3B | 45 | CCMT32.5 | CVD Coated, 2200-1014 | ||||||
| SCBCR10-3B | 75 | ||||||||
| Boring Bar | S10R-SCLCR3 | 95 |
M48 (0046-4008) |
5/8″ | 8″ | 13/16″ |
Specification of the QA10R-30B cut-off holder:
Shank Size: 5/8″
Tool Holder: QA10R-30B
Tool Holder Size (H x B): 5/8 x 5/8″
OAL (L): 4-1/2″
Insert: GTN-3
Insert Screw: M5 x 12
F: 0.637″
T: 0.728″
W: 0.118″
Maximum Depth: 0.728″
