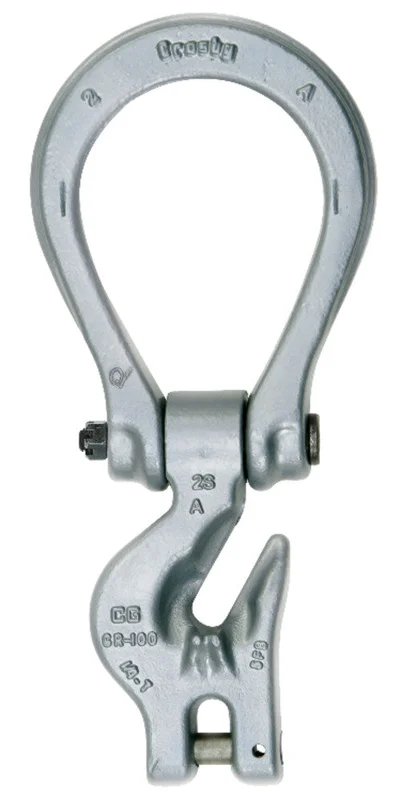

5/8″ A-1361 Single Eliminator Assembly

Description

The Crosby ELIMINATOR combines selected features and functionality of a master link, connecting link, grab hook and adjuster legs to provide you with one fitting that is suitable for applications that require an adjustable length chain sling. Forged Alloy Steel – Quenched and Tempered. Innovative two piece design allows for maximum flexibility. Individually Proof Tested with certification. The Crosby ELIMINATOR, with properly installed and locked latch pin, can be used for personnel lifting applications and meets the intent of OSHA Rule 1926.1431(g)(1)(i)(A) and 1926.1501(g)(4)(iv)(B). Suitable for use with Grade 100 and Grade 80 chain. Engineered to accommodate optional locking pins that can be inserted to lock the shortened chain legs into place. Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles. Use the A-1361 and A-1362 in combination to make 3 leg chain slings. Load pin assembly instructions on page 276. Look for the Platinum Color – Crosby Grade 100 Alloy Products. All sizes are RFID EQUIPPED.
