Description

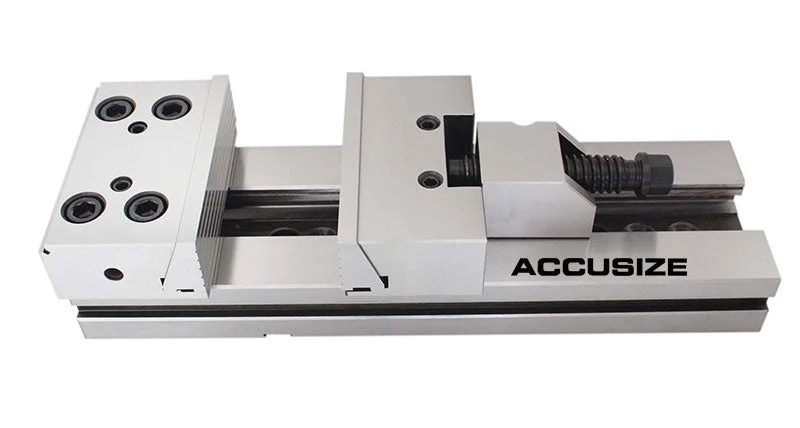

6″ x 8″ x 2″ W CNC Machine Vise system, matched vise bases +/- 0.0004″ , #1202-1025
- Low profile pull-down jaws.
- Forged steel body.
- This design eliminates clamping deflection. It can be opened very wide and provides strong clamping power.
- Ideal for all types of milling, grinding, drilling and tapping operations on vertical and horizontal CNC machining.
- High accuracyall surfaces are hardened and precision-ground square and parallel to an accuracy of 0.0012″ for jaws and 0.0008″ for the base.
- Low profile, matched vise bases +/- .0004″
- Jaw Width: 6″
- Jaw Opening: 8″
- Jaw Depth: 2″
- Overall Length: 16.8″
- Height: 3.937”
- Made of high-quality steel, carburized tosurface hardness: HRC 58-62.
