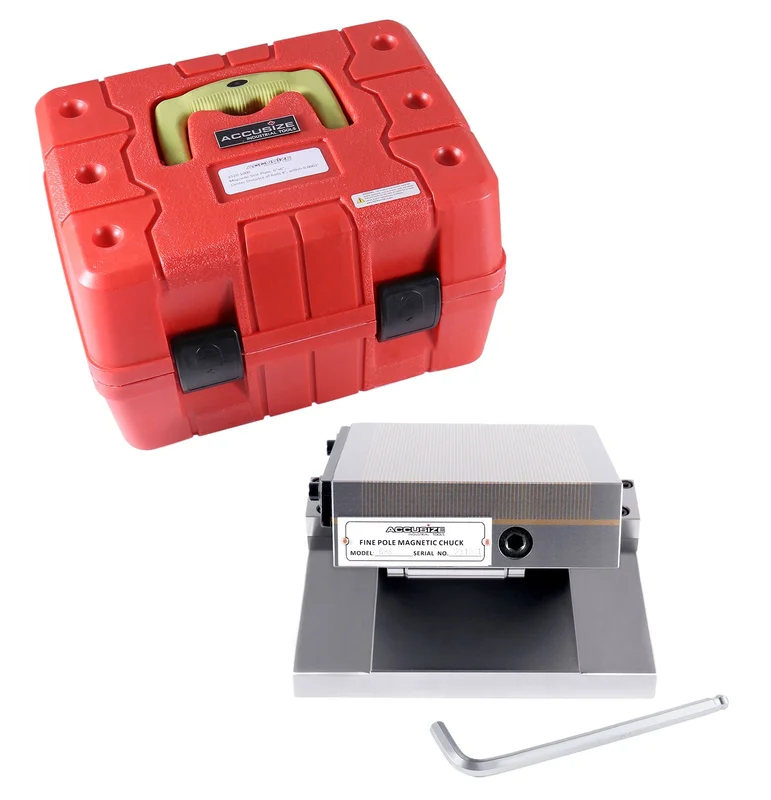

6″x6″ Magnetic Sine Plate, w/ 0.002″ Angle Step, Center Distance of Rolls 4″, within 0.0002″, 2520-1000

Description

6″X6″ Magnetic Sine Plate, #2520-1000

Center Distance of Rolls 4″, within 0.0002″

• Steel pole spacing: 1/16″, brass pole spacing: 1/32″.
• Center distance of rolls 4″, within 0.0002″.
• Size (LxB): 6″ x 6″
• Rolls Center (D):4″
• C:3.385″
• A:7.874″
• Angle:0-60

Applications:

• Precision grinding & EDM: Ideal for single-sided precision angle grinding on various surface grinders and EDM machines.
• Enhanced accuracy: Specially processed components ensure superior adjustment precision.
• Superior magnetic performance: Built with high-quality materials for strong suction, low residual magnetism, and uniform magnetic distribution.
• Maintains consistent flatness accuracy during ON/OFF switching.
• Fine-pole pitch (1.5+0.5mm): Specifically designed to hold smaller workpieces securely.

Features:

• Maximum effective working area
• Positive angle locking
• Hardened alloy tool steel construction
• High angular accuracy: 0.007/100mm, with minimal clearance at low angles.
