Description

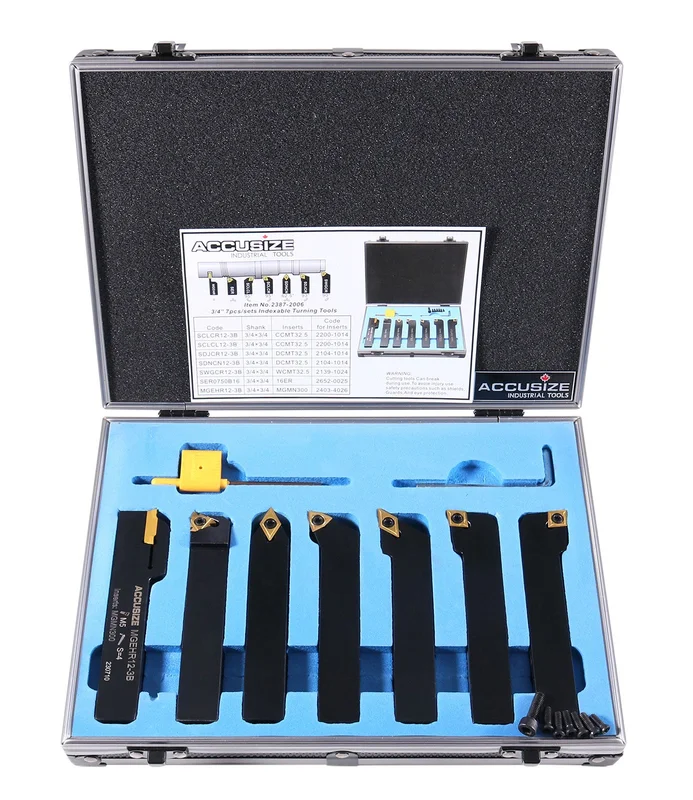

7 Pieces Lathe Tool Set, Indexable Carbide Turning Tools
- Black oxide smooth finish on each turning tool holder marked with tool holder style and shank size.
- Each tool holder comes with a C6 TiN Coated carbide insert for cutting steel with a positive rake cutting angle and a built-in chip breaker great for general purpose cutting action.
- Insert screw and wrench included.
- 7pcs indexable turning tool holder
- 7pcs TiN Coated C6 carbide insert
- 7pcs hex screw.
- Free keys
- Aluminum fitting case.
For purchasing additional inserts, you may find the corresponding Insert SKU below:
- 08ER A60 / 11ER A60 threading range: 48-16 TPI / 0.5-1.5 mm.
- 16ER AG60 threading range: 48-8 TPI / 0.5-3.0 mm.
| Item SKU | Shank Size (Inch) | Tool Holder | Tool Holder Size (Inch) | Overall Length (Inch) | Insert | Insert Coated, SKU | Screw | Screw SKU | Wrench |
| 2387-2001 | 1/4” | MGEHR04-2 | 1/4” x 3/8” | 3” | MGMN200 | TiN Coated, 2403-4022 | GB70-85/ M4 x10 | 0047-4010 | S3 |
| SER0250-08 | 1/4” x 5/16” | 08ER A60 | TiN Coated,2652-0860 | M2.2 x 6 | 0046-2206 | T6 | |||
| SWGCR04-2 | 1/4” x 3/8” | WCMT2.52 | TiN Coated, 2139-1020 | M3 x 6 | 0046-3006 | T8 | |||
| SCLCR04-2 | 1/4” x 5/16” | CCMT21.5 |
TiN Coated, 2100-1008 CVD Coated, 2200-1008 |
M2.5 x 6 | 0046-2506 | ||||
| SCLCL04-2 | |||||||||
| SDNCN04-2 | DCMT21.5 | TiN Coated, 2104-1010 | |||||||
| SDJCR04-2 | |||||||||
|
2387-2003 |
3/8” | MGEHR06-2J | 3/8” x 3/8” | 3-1/2” | MGMN200 | TiN Coated, 2403-4022 | GB70-85/ M4 x 10 | 0047-4010 | S3 |
| SER0375J11 | 11ER A60 | TiN Coated, 2652-0015 | M3 x 8 | 0046-3008 | T8 | ||||
| SWGCR06-2J | WCMT2.52 | TiN Coated, 2139-1020 | |||||||
| SCLCR06-2J | CCMT21.5 |
TiN Coated, 2100-1008 CVD Coated, 2200-1008 |
M2.5 x 8 | 0046-2508 | |||||
| SCLCL06-2J | |||||||||
| SDNCN06-2J | DCMT21.5 | TiN Coated, 2104-1010 | |||||||
| SDJCR06-2J | |||||||||
| 2387-2004 | 1/2” | MGEHR08-2J | 1/2” x1/2” | 3-1/2” | MGMN200 | TiN Coated, 2403-4022 | GB70-85/ M4 x 10 | 0047-4010 | S3 |
| SER0500J11 | 11ER A60 | TiN Coated, 2652-0015 | M3 x 8 | 0046-3008 | T8 | ||||
| SWGCR08-2J | WCMT2.52 | TiN Coated, 2139-1020 | |||||||
| SCLCR08-2J | CCMT21.5 |
TiN Coated, 2100-1008 CVD Coated, 2200-1008 |
M2.5 x 8 | 0046-2508 | |||||
| SCLCL08-2J | |||||||||
| SDNCN08-2J | DCMT21.5 | TiN Coated, 2104-1010 | |||||||
| SDJCR08-2J | |||||||||
| 2387-2005 | 5/8” | MGEHR10-3B | 5/8” x 5/8” | 4-1/2” | MGMN300 | TiN Coated, 2403-4026 | GB70-85/ M5 x 12 | 0047-4012 | S4 |
| SER0625B16 | 16ER AG60 | TiN Coated, 2652-0025 | M3.5 x 12 | 0046-3512 | Double Head S3.5 T15 | ||||
| SWGCR10-3B | WCMT32.5 | TiN Coated, 2139-1024 | M4 x 12 | 0046-4012 | |||||
| SCLCR10-3B | CCMT32.5 |
CVD Coated, 2200-1014 |
|||||||
| SCLCL10-3B | |||||||||
| SDNCN10-3B | DCMT32.5 | TiN Coated, 2104-1014 | |||||||
| SDJCR10-3B | |||||||||
| 2387-2006 | 3/4” | MGEHR12-3B | 3/4” x 3/4” | 4-1/2” | MGMN300 | TiN Coated, 2403-4026 | GB70-85/ M5 x 14 | 0047-5014 | S4 |
| SER0750B16 | 16ER AG60 | TiN Coated, 2652-0025 | M3.5 x 12 | 0046-3512 | Double Head S3.5 T15 | ||||
| SWGCR12-3B | WCMT32.5 | TiN Coated, 2139-1024 | M4 x 12 | 0046-4012 | |||||
| SCLCR12-3B | CCMT32.5 | CVD Coated, 2200-1014 | |||||||
| SCLCL12-3B | |||||||||
| SDNCN12-3B | DCMT32.5 | TiN Coated, 2104-1014 | |||||||
| SDJCR12-3B |
Guide of 2387-2001
Download Application and Accessory Guide of 2387-2001
Guide of 2387-2003
Download Application and Accessory Guide of 2387-2003
Guide of 2387-2004
Download Application and Accessory Guide of 2387-2004
Guide of 2387-2005
Download Application and Accessory Guide of 2387-2005
Guide of 2387-2006
Download Application and Accessory Guide of 2387-2006
