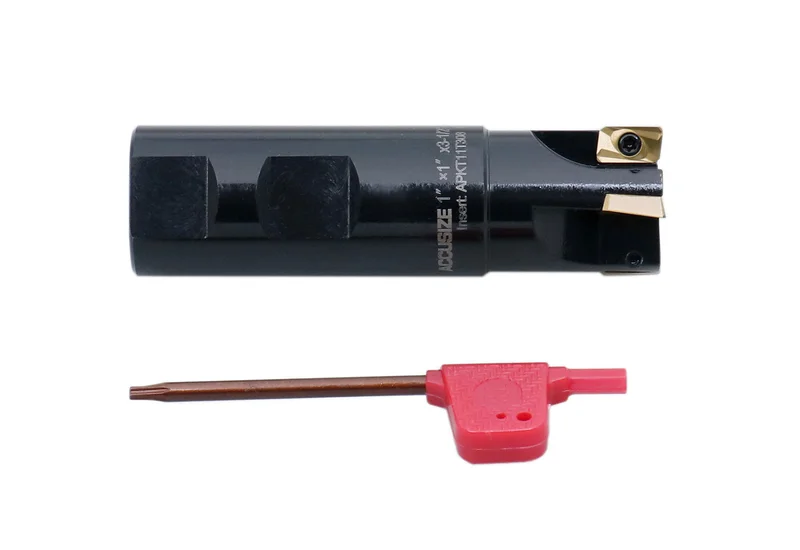

90 Degree Square Shoulder Indexable End Mill w/ Carbide APKT Inserts

90 Degree Square Shoulder Indexable End Mill w/ Carbide APKT Inserts

SKU: TR890006425
Inventory: In Stock
Category:
Original price was: $38.99.Current price is: $23.39.

Related products

Description

90 Degree Square Shoulder Indexable End Mill w/ Carbide APKT Inserts

  • 90 Cutting angle
  • Screw down insert
  • Radial rake angle: -10
  • Axial rake angle: +7
  • All types of square shoulder face milling, side milling and full slot milling (shaft end mills) of steels, alloyed steels, stainless and heat resistant steels, case irons and aluminum alloys.
  • Fitted with 10 positive rectangular insert allow high depth of cut and feed per tooth
  • Uses APKT / APHW / APKR_APHT / APMT insert (sold separately)

Item Cutting Diameter (D) Shank (d1) Oal(L) ap No of Inserts Screw Inserts
0056-0912 3/8″ 1/2″ 3″ 0.433″ 1

M2.5 x 6

(0046-2506)

APKT11T308

(TiN Coated, 0056-1130)
0056-0913 1/2″ 5/8″ 3-1/4″ 0.433″ 1
0056-0914 1/2″ 1/2″ 3-1/4″ 0.433″ 1
0056-0916 5/8″ 5/8″ 3-1/4″ 0.433″ 2
0056-0917 3/4″ 3/4″ 3-1/2″ 0.433″ 3
0056-0920 1″ 1″ 3-1/2″ 0.433″ 4
0056-0921 1″ 1″ 3-3/4″ 0.551″ 2

M4 x 8

(0046-4008)

APKT1604

(TiN Coated, 0056-1604)
0056-0922 1-1/4″ 1-1/4″ 3-3/4″ 0.551″ 3
0056-0923 1-1/4″ 1-1/2″ 4-1/4″ 0.433″ 6

M2.5 x 6

(0046-2506)

APKT11T308

(TiN Coated, 0056-1130)
0056-0924 1-1/2″ 1-1/2″ 4-1/4″ 0.551″ 4

M4 x 8

(0046-4008)

APKT1604

(TiN Coated, 0056-1604)

Recommended RPM

Item No. Materials Hardness(HB) Cutting parameter
V(ft /min) f(inch/Z) ae
0056-0912 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0913 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0914 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0916 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0917 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0920 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0921 hardwood, MDF 394-786 0.004-0.008
Low-carbon Steel 180 197 – 393 0.002 – 0.004 0.5D
High-carbon Steel, Alloy Steel 180-280 197 – 393 0.002 – 0.004 0.5D
Tool Steel 280-350 197 – 295 0.002 – 0.004 0.5D
0056-0922 hardwood, MDF 262-524 0.008-0.016
Low-carbon Steel 180 131 – 262 0.004 – 0.008 0.5D
High-carbon Steel, Alloy Steel 180-280 131 – 262 0.004 – 0.008 0.5D
Tool Steel 280-350 98 – 197 0.004 – 0.008 0.5D
0056-0923 hardwood, MDF 262-524 0.008-0.016
Low-carbon Steel 180 131 – 262 0.004 – 0.008 0.5D
High-carbon Steel, Alloy Steel 180-280 131 – 262 0.004 – 0.008 0.5D
Tool Steel 280-350 98 – 197 0.004 – 0.008 0.5D
0056-0924 hardwood, MDF 262-524 0.008-0.016
Low-carbon Steel 180 131 – 262 0.004 – 0.008 0.5D
High-carbon Steel, Alloy Steel 180-280 131 – 262 0.004 – 0.008 0.5D
Tool Steel 280-350 98 – 197 0.004 – 0.008 0.5D

V= Cutting Speed (ft/min)
f= Feed per tooth (inch/Z)
ae=Cutting width

**ABOVE CUTTING PARAMETERS PROVIDED FOR REFERENCE ONLY **
