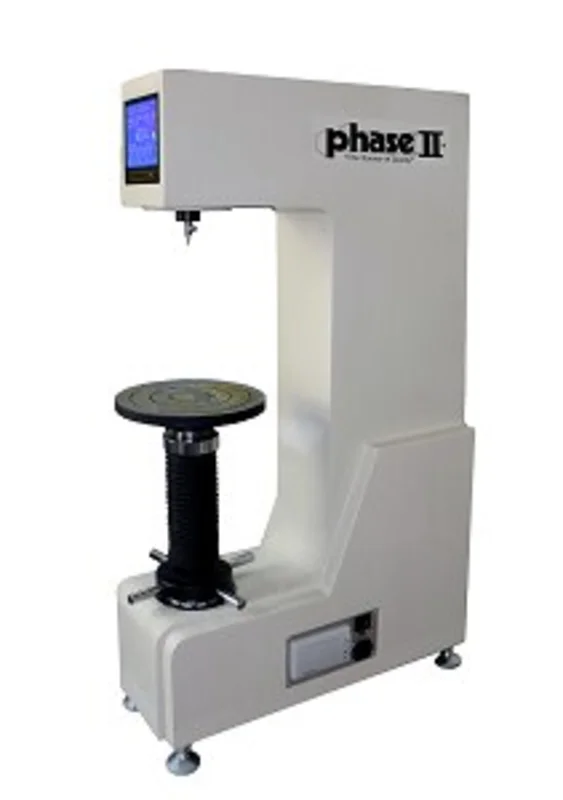

Model No. 900-349
This digital Superficial Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-349 digital superficial Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the superficial Rockwell scales.
Automatic conversions to: HRN, HRT, HB, HV, HLD and b.
Features:
- Fully automated load/unload procedures affords highly sensitive and accurate readings
- Micro computer controlled with USB output to built-in mini printer or PC.
- Offers programmable scale conversions, dwell times, statistical capabilities and test counter
- Capable of testing in all of the Superficial Rockwell hardness scales
- Automatic conversions to Scale conversion, HV, HB, HK, b
- Easily obtain Average, Min/Max, S, R
- Menu selectable system
- Upper/Lower Limit Settings
- Memory of 500 test results
- Curved Surface Auto correction
|
Specifications:
| Minor Load |
3 Kgf
|
| Major Load |
15 Kgf, 30 Kgf, 45 KGF |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Hi Def LCD Digital Readout |
| Resolution |
0.1HR |
| Memory/Output |
500 Tests/USB |
| Vertical Capacity |
16.5″ |
| Throat Depth |
6.50″ |
| Height |
28.34″ |
| Width |
7.87″ |
| Depth |
21.60″ |
| Weight |
220 lbs. |
Standard Accessories:
- N-scale Diamond Indentor
- 1/16″ Steel Ball Indenter
- Test Table 5.87″ (150mm)
- Flat Anvil 2.5″ (63mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
- 3 pieces-HRN test blocks
- 3 pieces-HRT test blocks
Options:
- NIST/ASTM certified hardness test blocks, penetrators and kits are available.
|
|
Key performance parameters:
- Preload:3kgf (29.4N)
- Total test force:15kgf (147.1 N), 30kgf (294.3N), 45kgf (441.3 N)
- Scales: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
- Load cycle:3~8s
- Load dwell duration:2~50sLCD
- Resolution:0.1HR
- Display:High definition LCD w/Backlight
- Operation:Menu selectable, Membrane keypad
- Auxiliary functions:Upper/lower limits setting& alarming,
- Data statistics, Avg., Max., Min., S, R,
- Scale conversion, HV, HB, HK, b,
- Curved surface Auto Correct
- Data output: USB data output to PC, Integrated printer
- Memory: Max 500 items of test results stored automatically
- Testing space:200mm in vertical, 165mm in horizontal
- Dimensions:550mm200mm720mm
- Power supply: single phase, AC, 110V, 50~60Hz, 4A
Prior to ship, please advise power setting needed.
- Net weight: 85kg
|
|
SPECIAL ORDER CALL FOR DELIVERY
|
