Description

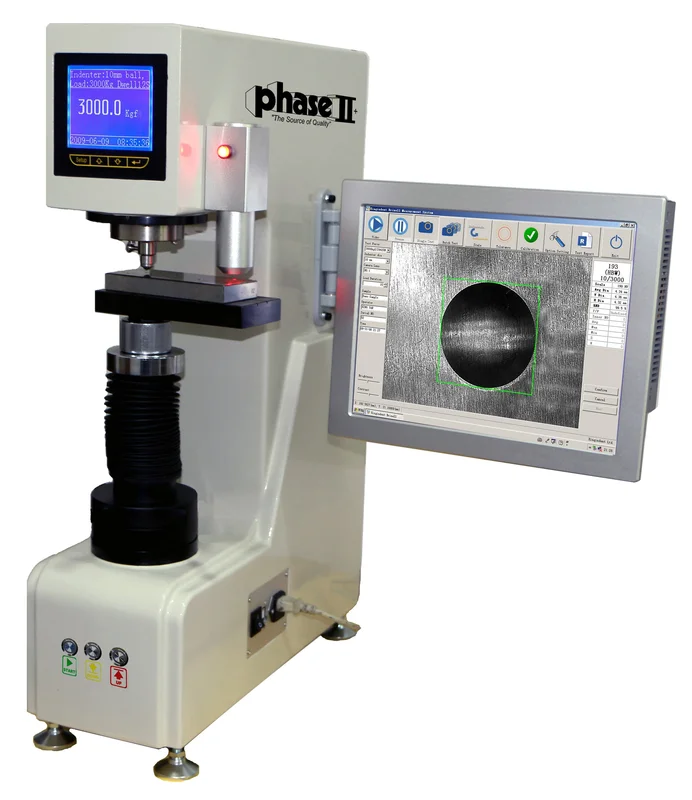

AUTOMATIC Brinell Hardness Testers w/Auto Z Axis!/Automatic Brinell Hardness Testing

Model No. 900-359

Features

Ships directly from the factory in the United States.

• Equipped with CCD camera and built-in touch screen PC performs the indentation measuring process automatically.

Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the Brinell Hardness Tester less sensitive to misalignments caused by vibrations.

Features: Brinell hardness tester

Press the START key once, the Brinell hardness tester will complete the entire test cycle automatically1)sample elevation 2)major load application 3)Dwell Time 4) Unloading.

• Brinell Hardness Tester equipped with CCD camera and built-in touch screen PC performs the indentation measuring process automatically.
• Hardness Measurement software includes useful functions.
  a)Single and batch testing mode
  b)Tolerance setting w/alarm
  c) Statistic values such as Max, Min, Avg, R and S are selectable
  d)Convert test result to other scales, such as HRC,HRB,HRA,HV,b.
• All Brinell Hardness test results and indention images are saved automatically
• Brinell Hardness Test report created in Microsoft EXCEL format, can be edited, copied or printed.
• Load Cell driven system provides precise control of test force application
• Direct digital Brinell Hardness reading
• Engineered to obtain highly sensitive and accurate readings
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
• Brinell Hardness Measuring Range: 8-650HBW

Specifications: Brinell hardness tester

Press the START key once, the Brinell hardness tester will complete the entire test cycle
automatically1)sample elevation 2)major load application 3)Dwell Time 4) Unloading.

• The gross weight of the tester is 50% less than the traditional dead weights type tester.
• Test load selection by keyboard and LCD screen.

Technical data:

• Loads3000kgf (29400N), 1500Kgf (14700N), 1000Kgf (9800N), 750Kgf(7355N),500Kgf
  (4900N), 250Kgf (2452N), 187.5Kgf (1839N), 125Kgf (1226N),100Kgf (980N), 62.5Kgf(612.9N)
• Load dwell duration:2s99s, can be set and stored
• Tungsten Carbide Ball indenter:10mm, 5mm, 2.5mm
• Measuring range:3.18HBW~ 658HBW
• Max Weight Capacity for Z-Axis:330 lbs (150kg)
• Max measurable height:230 mm
• Max measurable depth:140 mm
• Dimensions:530mm260mm750mm
• Power supply:220/110 V, 50/60 Hz, 4A
• Weight:110kg
