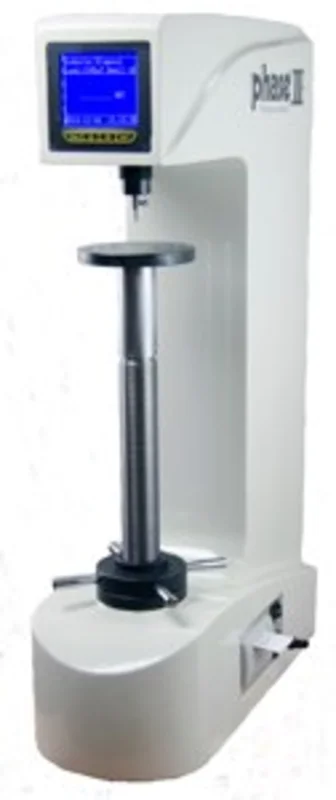

Model No. 900-366
This digital Rockwell hardness tester with fully automated load/unload procedures affords highly sensitive and accurate readings. Micro computer controlled with USB output to built-in mini printer or PC. The 900-366 digital Rockwell hardness tester offers programmable scale conversions, dwell times, statistical capabilities and test counter. Capable of testing in all of the regular Rockwell scales.
Automatic conversions to: HRN, HRT, HB, HV, HLD and ?b.
Features:
- Easily obtain Average, Min/Max, S, R
- Menu selectable system
- Upper/Lower Limit Settings
- Memory of 500 test results
- Curved Surface Auto Correction
|
Specifications:
| Minor Load |
10 Kgf
|
| Major Load |
60 Kgf, 100 Kgf, 150 KGF |
| Test Force Application |
Dead Weight |
| Test Force Control |
Motorized |
| Results Display |
Hi Def LCD Digital Readout |
| Resolution |
0.1HR |
| Memory/Output |
500 Tests/USB |
| Vertical Capacity |
16.5″ |
| Throat Depth |
6.50″ |
| Height |
28.34″ |
| Width |
7.87″ |
| Depth |
21.60″ |
Standard Accessories:
- C-scale Diamond Indenter
- 1/16″ Ball Indenter
- Built-in Mini Printer
- Test Table 5.87″ (150mm)
- Flat Anvil 2.5″ (63mm)
- Std. Vee Anvil
- Accessory Case
- Dust Cover
- 3 piece-HRC test blocks
- 1 piece-HRB test block
- 1 piece-HRA test block
Options:
- NIST/ASTM certified hardness test blocks, penetrators and kits are available.
|
The 900-366 digital Rockwell hardness tester comes complete with everything needed to test in the following Rockwell Scales: A, B, C, D, F, G.
Other Rockwell Scales can be achieved with optional indentors! |
|
Key performance parameters
- Preload:98.1N (10kgf)
- Total test force:588.4N(60kgf), 980.7N(100kgf), 1471N(150kgf)
- Scales:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV
- Conversions: The 900-366 digital Rockwell hardness tester can convert the measured Rockwell hardness value to other scales or even tensile strength. Example: the value of HRA scale can be automatically converted into HBS, HBW, HV and HK value; Convert the value of HRB scale into HB10, HB30, HV, HLD, b and HK value; Convert the value of HRC scale into HBS, HBW, HV, HLD, HR15N, HR30N, b and HK value; Convert the value of HRD scale into HV, HK, HB value; Convert the value of HRE scale into HV, HK, HB value; Convert the value of HRF scale into HV, HB value.
- Load cycle: 3~8s
- Load dwell duration:2~50s
- Resolution: 0.1HR
- Display:High definition backlight LCD
- Operation:Menu selectable, Membrane keypad
- Auxiliary functions:Upper/lower limits setting& alarming,
Data statistics, Avg., Max., Min., S, R,
Scale conversion, HV, HB, b, etc.
Curved surface Auto Correction
- Data output: Print out, or output to PC through USB port
- Memory: Max 500 items of test results stored automatically
- Testing Capacity:Vertical:7.87″Throat Depth: 6.50″
- Dimensions:Height: 21.65″Width:10″Depth: 36.6″
- Power supply: single phase, AC, 110V, 50~60Hz, 4A
Prior to ship, please advise power setting needed.
- Net weight:20 lbs (100kg)
- Shipping Weight: approx. 300 lbs
|
|
|
