Description

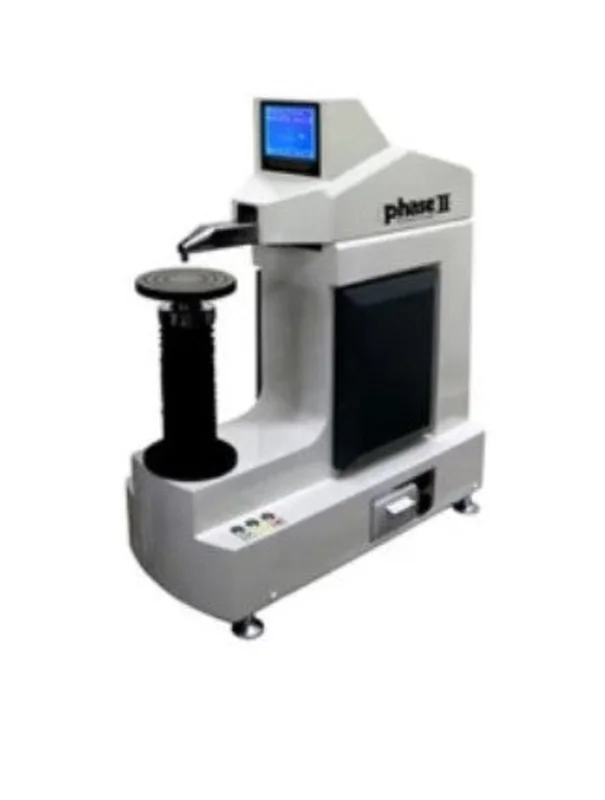

Fully Automatic Universal Hardness Tester

Shipped directly from PHASE II+ in NJ, USA

SPECIAL ORDER – PLEASE CONTACT US BEFORE ORDERING

Model No. 900-450

Features

The test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit that replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.

• Rockwell, Brinell and Vickers Universal Hardness Tester

Rockwell, Brinell and Vickers Univeral Hardness Tester

• The hardness test force is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit that replace traditional dead weights. The result is highly accurate hardness test measurements at all test loads up to 0.5%.
• Simple plug and play tech allows for much more quick and easy installation than traditional dead weight type hardness testing machines.
• Automated Z-Axis .Just press START key once, entire hardness test process will be finished automatically. regardless of the size of the sample, the position of the sample, the distance between the indenter and sample surface. The sample will be auto-lifted to approach the indenter and finish hardness testing automatically.
• Higher precision than handle wheel lifting/dead weight type hardness machines which can be affected by user interaction.
• Extended dolphin nose allows vertical test height of 11.8 and throat depth of 8.6.
• Built-in micro-printer.

Basic hardness tester functions:

• Twin hardness testerRegular Rockwell & Superficial Rockwell hardness testing for metal and plastic material.
• Horizontal dolphin nose Indenter is suitable also for internal and external hardness testing.
• Rockwell hardness testing on Surfaces difficult to reach. Testing internal surface of rings and tubes.
• Advanced Rockwell hardness tester with many features such as high precision measuring, wide measuring range with 30 Rockwell hardness scales.
• The rockwell hardness tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
• Automatic hardness testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically.
• Rockwell hardness Test Measuring results and conversions, digitally displayed and can be printed, or transmitted to external computer automatically via USB port.
• Hardness test HR value can be converted to the value of HB, HV, HK and b value.
• Utilizing the guidelines of ASTM E-18

ROCKWELL Hardness Parameters

• Preload:29.4N3kgf, 98.1N (10kgf)
• Total test force147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), (superficial)
  588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf) (Regular Rockwell)
• Scales:HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y , HRAHRBHRCHRDHREHRF, HRGHRHHRKHRLHRMHRP, HRRHRSHRV

BRINELL hardness parameters:

• Test force15.625kgf31.25kgf, 62.5kgf100kgf, 125kgf, 187.5kgf250kgf
• Indenter2.5mm, 5mm, 10mm
• Scales:2.5/187.5 2.5/62.5 2.5/31.25 2.5/15.625 5/250 5/125 5/62.5 10/100 10/250

VICKERS hardness parameters:

• Test force3kgf10kgf20kgf30kgf50kgf100kgf
• Indenter136diamond pyramid
• Scales:HV3HV10HV20HV30HV50HV100

Other Important Hardness Tester Parameters:

• Load dwell duration:250s, can be set and stored
• Resolution0.1HR
• Display:High definition backlight LCD
• Operation:Menu selectable, Membrane keypad
• Limit setting:Upper/lower limits setting & alarming
• Data statisticsAvg., Max., Min., S, R
• Curved surface auto correction
• Memory:Max 400 items of test results stored automatically
• Testing Capacity:300mm (vertical) , 220mm (horizontal)
• Dimensions690mm280mm860mm
• Power supplyAC, 220V/110V, 5060Hz, 4A (convertible)
• Net weight86 kg (190lbs)
• Gross weight:120kg (265 lbs)

Included Accessories:
