Description

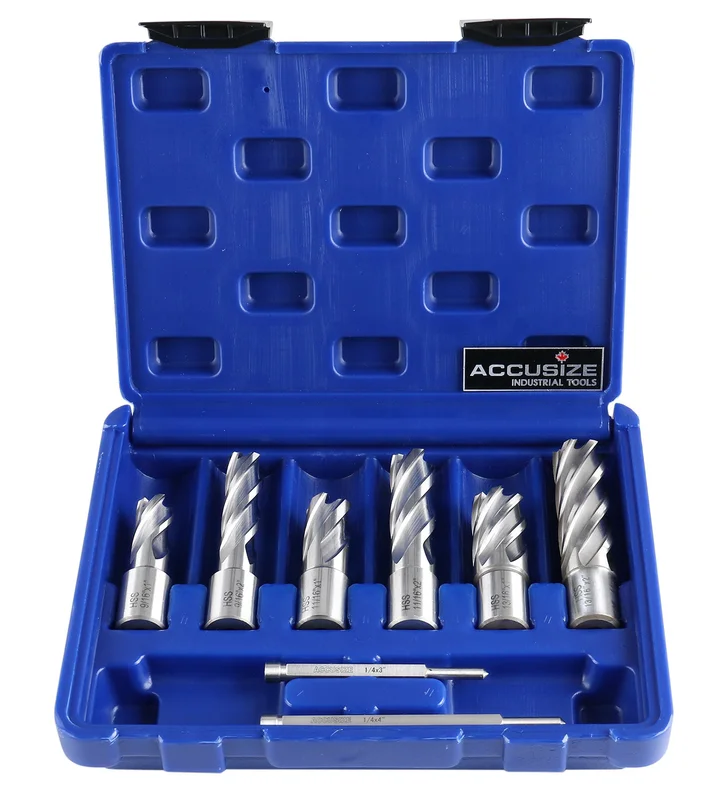

Annular Cutter Set, 9/16″, 11/13″, & 13/16″ Cut Dia., 1″ & 2″ Cut Depth, 3/4″ Weldon Shank, 2 Pilot Pins, 8 Pcs, 0519-0002
- Contains:
- 1-pc H.S.S. Annular Cutter 9/16″ x 1″ Depth(2080-2014)
- 1-pc H.S.S. Annular Cutter 9/16″ x 2″ Depth(2081-2014)
- 1-pc H.S.S. Annular Cutter 11/16″ x 1″ Depth(2080-2016)
- 1-pc H.S.S. Annular Cutter 11/16″ x 2″ Depth(2081-2016)
- 1-pc H.S.S. Annular Cutter 13/16″ x 1″ Depth(2080-2018)
- 1-pc H.S.S. Annular Cutter 13/16″ x 2″ Depth(2081-2018)
- 1-pc Pilot Pin Dia. 1/4″ x 3″ OAL(0600-0070)
- 1-pc Pilot Pin Dia. 1/4″ x 4″ OAL(0600-0090)
- Packed in a blue plastic blow mould case;
- Make overlapping holes, slotting holes and edge cuts;
- Cuts holes in steel accurately, quickly & safely. Large holes can be drilled up to ten times faster than regular drills bits;
- Machine finish hole no reaming needed when used with lubricant;
- Lower Cost per Hole; Premium High-Speed Steel. Heat-resistant & Wear-resistant;
| Cutter | Qty | Cutting Diameter | Cutting Depth |
| 2080-2014 | 1 | 9/16″ | 1″ |
| 2081-2014 | 1 | 9/16″ | 2″ |
| 2080-2016 | 1 | 11/16″ | 1″ |
| 2081-2016 | 1 | 11/16″ | 2″ |
| 2080-2018 | 1 | 13/16″ | 1″ |
| 2081-2018 | 1 | 13/16″ | 2″ |
| Pilot Pin | Qty | Diameter | Overall Length |
| 0600-0070 | 1 | 1/4″ | 3″ |
| 0600-0090 | 1 | 1/4″ | 4″ |
