Description

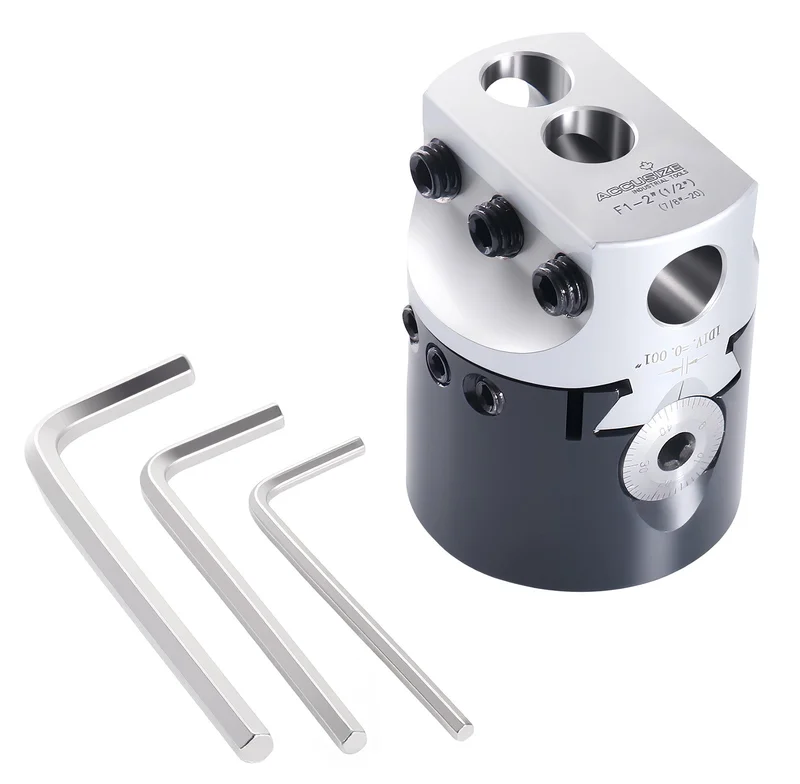

Boring Heads
- High quality, excellent performance and practical design at an affordable price.
- Maximum rigidity is assured when a boring bar holder is used in an offset position.
- Hardened and ground adjusting screw along with our wide base design guarantees long life and trouble-free use
| Item | Actual Size (D) |
Overall length |
Boring bar hole size (d1) |
Center distance between holes | Offset | Thread Mount |
| 0350-0002 | 2″ | 2-1/2″ | 1/2″ | 5/8″ | 5/8″ | 7/8~20″ |
| 0350-0003 | 3″ | 3-5/32″ | 3/4″ | 15/16″ | 1″ | 1-1/2~18″ |
| 0350-0004 | 4″ | 3-43/64″ | 1″ | 1-1/4″ | 1″ | 1-1/2~18″ |
