Description

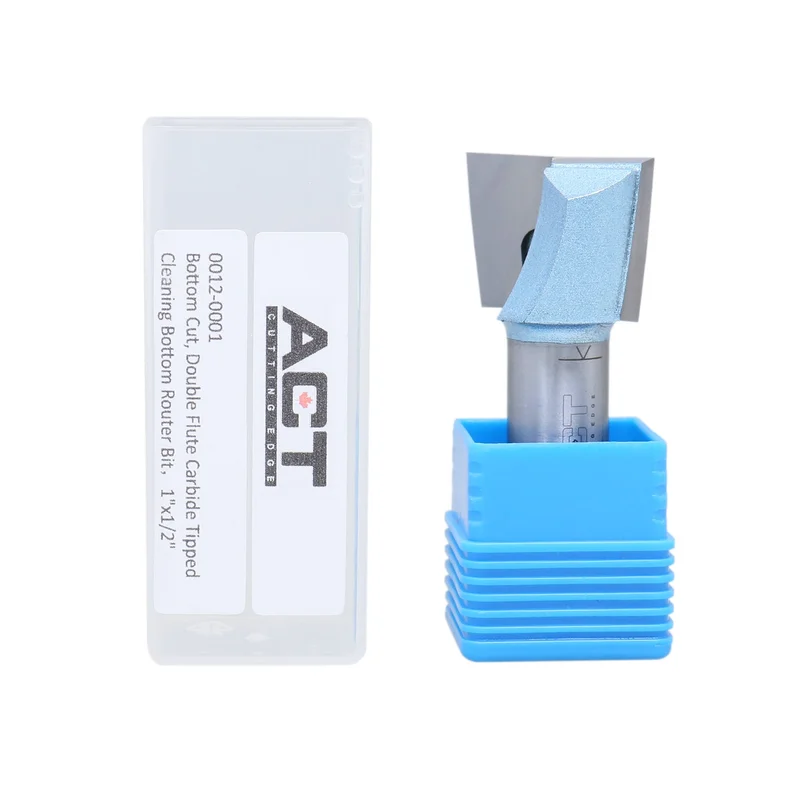

Bottom Cutting Dia Double Flute Carbide Tipped Bottom Cleaning
Router Bit
- Woodworking Milling Cutter CNC Router Mill Bit
- Individually dynamic balanced.
- Use on CNC and other automatic routers as well as hand-held and table-mounted portable routers.
- Material: tungsten carbide
- 2 flute type: straight shank double flutes
| Item | Shank Dia | Cutting Dia (D) |
Flute Length (H) |
OAL |
| 0012-0012 | 1/2″ | 1/2″ | 20mm | 63mm |
| 0012-0034 | 1/2″ | 3/4″ | 20mm | 58mm |
| 0012-0078 | 1/2″ | 7/8″ | 20mm | 58mm |
| 0012-0001 | 1/2″ | 1″ | 20mm | 58mm |
| 0012-0114 | 1/2″ | 1-1/4″ | 20mm | 58mm |
| 0012-0112 | 1/2″ | 1-1/2″ | 20mm | 58mm |
| 0012-0002 | 1/2″ | 2″ | 15mm | 53mm |
| 0014-0038 | 1/4″ | 3/8“ | – | – |
| 0014-0012 | 1/4″ | 1/2″ | 20mm | 52mm |
| 0014-0058 | 1/4″ | 5/8“ | – | – |
| 0014-0034 | 1/4″ | 3/4″ | 20mm | 52mm |
| 0014-0078 | 1/4″ | 7/8″ | 20mm | 52mm |
| 0014-0001 | 1/4″ | 1″ | 20mm | 52mm |
