Description

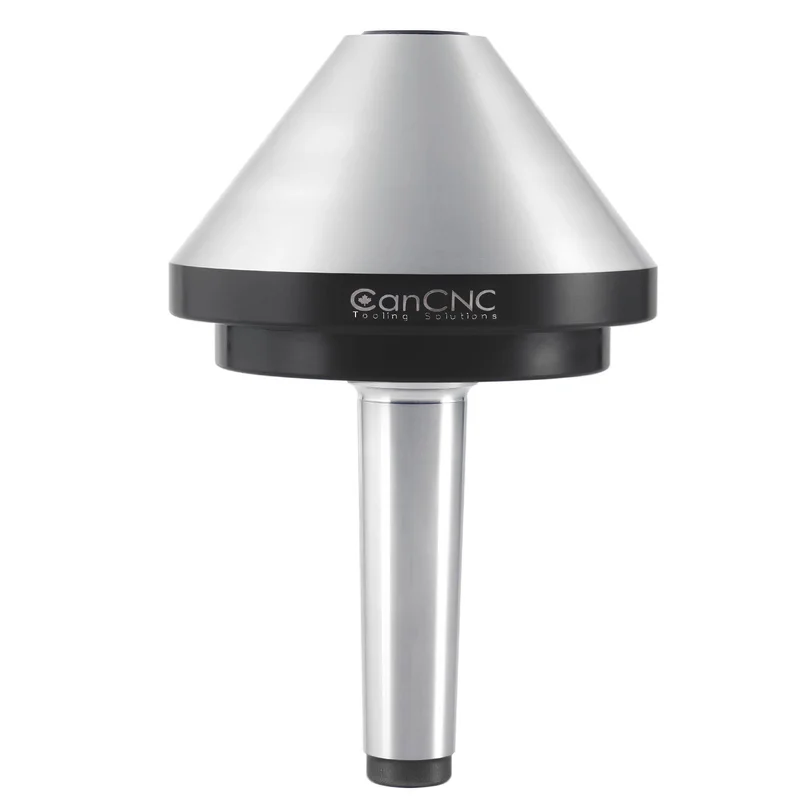

Bull Nose Live Center
- The head is made of high carbon alloy steel.
- The live center has a combinationof deep groove ball bearing.
- Higher grade of ball bearing allowsthis live center to be more accuratein runout.
- TIR: 0.0004″.
- In a fitted case.
.tg {border-collapse:collapse;border-spacing:0;border:1px solid black;}.tg td{border-width:1px;font-size:14px; overflow:hidden;word-break:normal; border:1px solid black;}.tg th{border-width:1px;font-size:14px; font-weight:normal;overflow:hidden;word-break:normal;border:1px solid black;}.tg .tg-0lax{text-align:left;vertical-align:top;border:1px solid black;}
| Item | Morse Taper | Model | D | D1 | D2 | L1 | L | TIR | Max. Weight of Workpiece | Max RPM | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 5312-1010 | MT2 | SX-63-MT2 | 0.70″ | 2.50″ | 0.81″ | 1.46″ | 5.76″ | 0.0004″ | 60 | 440lbs | 2500 | 1.98lbs |
| 5312-1410 | MT3 | SX-100-MT3 | 0.94″ | 4.00″ | 1.00″ | 2.00″ | 6.42″ | 0.0004″ | 75 | 880lbs | 2500 | 6.39lbs |
| 5312-1810 | MT4 | SX-128-MT4 | 1.23″ | 5.04″ | 1.57″ | 2.26″ | 7.78″ | 0.0004″ | 75 | 1760lbs | 2000 | 10.47lbs |
| 5312-2210 | MT5 | SX-160-MT5 | 1.75″ | 6.22″ | 1.81″ | 2.89″ | 8.99″ | 0.0004″ | 75 | 3000lbs | 1500 | 23.15lbs |
