Description

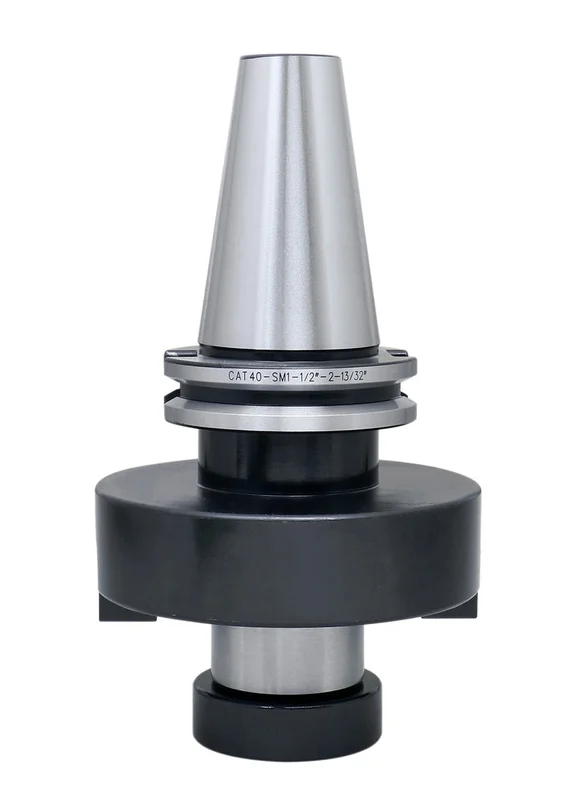

CAT40 Caterpillar V-Flange Shell End Mill Holders
- Interchangeable with brown & sharp, Burgmaster, Carboloy, Cincinnati Milacron, De Vlieg, Erickson, Excello, Moog, Pratt & Whitney, Universal, Valenite, White Sund Strand and other machining centers.
- Made from alloy steel hardened to HRC 52-56
- Taper accurately ground exceeding AT3 standard
- Drawbar thread: CAT40 5/8″-11.
- All these “V” flange tools are interchangeable with industrial standard tools
- TIR: 0.0002″
| Item # | D | L1 | L | A | B | d | M |
|---|---|---|---|---|---|---|---|
| 6780-7100 | 1/2″ | 1-3/8″ | 4-5/8″ | 9/16″ | 1-3/4″ | 0.375″ | 1/4″-28UNF |
| 6780-7102 | 3/4″ | 1-3/8″ | 4-3/4″ | 11/16″ | 1-49/64″ | 0.563″ | 3/8″-24UNF |
| 6780-7104 | 1″ | 2-1/16″ | 5-7/16″ | 11/16″ | 2-1/4″ | 0.750″ | 1/2″-20UNF |
| 6780-7106 | 1-1/4″ | 2-1/8″ | 5-1/2″ | 11/16″ | 2-3/4″ | 0.940″ | 5/8″-18UNF |
| 6780-7108 | 1-1/2″ | 2-13/32″ | 6-1/32″ | 15/16″ | 3-3/4″ | 1.874″ | 3/4″-16UNF |
