Description

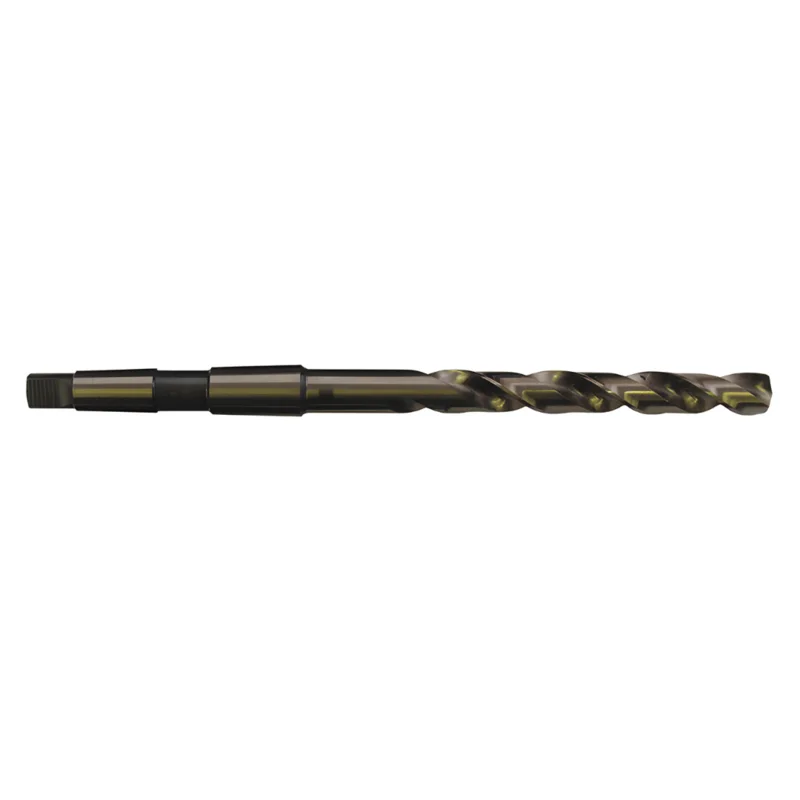

Cobalt Taper Shank Drills offer increased hardness, toughness and better wear resistance compared to regular HSS
Gold Oxide surface finish provides a polished finish and prevents chip building, galling and welding on a workpiece
135 Notched Point
Made to fit American Standard (Morse) taper shank holders
Ideal for tough, high tensile strength steels and stainless steels
Substrate: Cobalt
Surface Treatment: Bronze
Flute Type: Regular Spiral
| Accusize SKU# | FRAC (inch) | MTS (inch) | DEC (inch) | FLT (inch) | OA (inch) |
| DR36-031C | 31/64 | 2 | 0.4844 | 4-3/8 | 8-1/4 |
| DR36-032C | 1/2 | 2 | 0.5 | 4-3/8 | 8-1/4 |
| DR36-033C | 33/64 | 2 | 0.5156 | 4-5/8 | 8-1/2 |
| DR36-034C | 17/32 | 2 | 0.5312 | 4-5/8 | 8-1/2 |
| DR36-035C | 35/64 | 2 | 0.5469 | 4-7/8 | 8-3/4 |
| DR36-036C | 9/16 | 2 | 0.5625 | 4-7/8 | 8-3/4 |
| DR36-037C | 37/64 | 2 | 0.5781 | 4-7/8 | 8-3/4 |
| DR36-038C | 19/32 | 2 | 0.5938 | 4-7/8 | 8-3/4 |
| DR36-039C | 39/64 | 2 | 0.6094 | 4-7/8 | 8-3/4 |
| DR36-040C | 5/8 | 2 | 0.625 | 4-7/8 | 8-3/4 |
| DR36-041C | 41/64 | 2 | 0.6406 | 5-1/8 | 9 |
| DR36-042C | 21/32 | 2 | 0.6562 | 5-1/8 | 9-3/4 |
| DR36-043C | 43/64 | 2 | 0.6719 | 5-3/8 | 9-1/4 |
| DR36-044C | 11/16 | 2 | 0.6875 | 5-3/8 | 10 |
| DR36-045C | 45/64 | 2 | 0.7031 | 5-5/8 | 9-1/2 |
| DR36-046C | 23/32 | 2 | 0.7188 | 5-5/8 | 10-1/4 |
| DR36-047C | 47/64 | 2 | 0.7344 | 5-7/8 | 9-3/4 |
| DR36-048C | 3/4 | 2 | 0.75 | 5-7/8 | 10-1/2 |
| DR36-049C | 49/64 | 2 | 0.7656 | 6 | 9-7/8 |
| DR36-050C | 25/32 | 2 | 0.7801 | 6 | 10-3/4 |
