Description

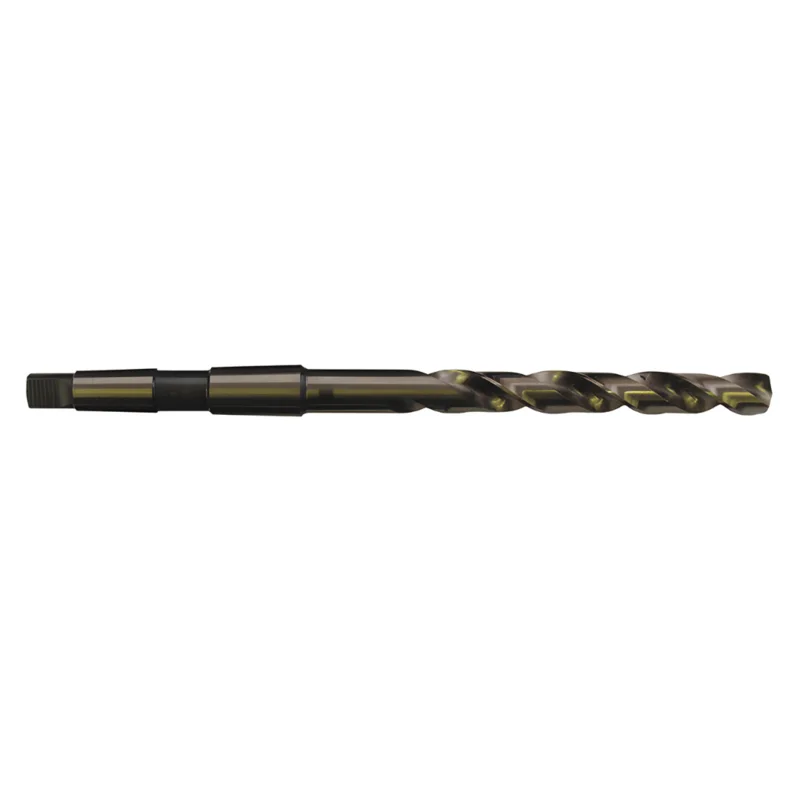

Cobalt Taper Shank Drills offer increased hardness, toughness and better wear resistance compared to regular HSS
Gold Oxide surface finish provides a polished finish and prevents chip building, galling and welding on a workpiece
135 Notched Point
Made to fit American Standard (Morse) taper shank holders
Ideal for tough, high tensile strength steels and stainless steels
Substrate: Cobalt
Surface Treatment: Bronze
Flute Type: Regular Spiral
| Accusize SKU# | FRAC (inch) | MTS (inch) | DEC (inch) | FLT (inch) | OA (inch) |
| DR36-051C | 51/64 | 3 | 0.7969 | 6-1/8 | 10-3/4 |
| DR36-052C | 13/16 | 3 | 0.8125 | 6-1/8 | 10-3/4 |
| DR36-053C | 53/64 | 3 | 0.8281 | 6-1/8 | 10-3/4 |
| DR36-054C | 27/32 | 3 | 0.8438 | 6-1/8 | 10-3/4 |
| DR36-055C | 55/64 | 3 | 0.8594 | 6-1/8 | 10-3/4 |
| DR36-056C | 7/8 | 3 | 0.875 | 6-1/8 | 10-3/4 |
| DR36-057C | 57/64 | 3 | 0.8906 | 6-1/8 | 10-3/4 |
| DR36-058C | 29/32 | 3 | 0.9062 | 6-1/8 | 10-3/4 |
| DR36-059C | 59/64 | 3 | 0.9219 | 6-1/8 | 10-3/4 |
| DR36-060C | 15/16 | 3 | 0.9375 | 6-1/8 | 10-3/4 |
| DR36-061C | 61/64 | 3 | 0.9531 | 6-3/8 | 11 |
| DR36-062C | 31/32 | 3 | 0.9688 | 6-1/8 | 10-3/4 |
| DR36-063C | 63/64 | 3 | 0.9844 | 6-3/8 | 11 |
| DR36-100C | 1 | 3 | 1 | 6-3/8 | 11 |
| DR36-101C | 1-1/64 | 3 | 1.0156 | 6-1/2 | 11-1/8 |
| DR36-102C | 1-1/32 | 3 | 1.0312 | 6-1/2 | 11-1/8 |
| DR36-103C | 1-3/64 | 3 | 1.0469 | 6-5/8 | 11-1/4 |
