Description

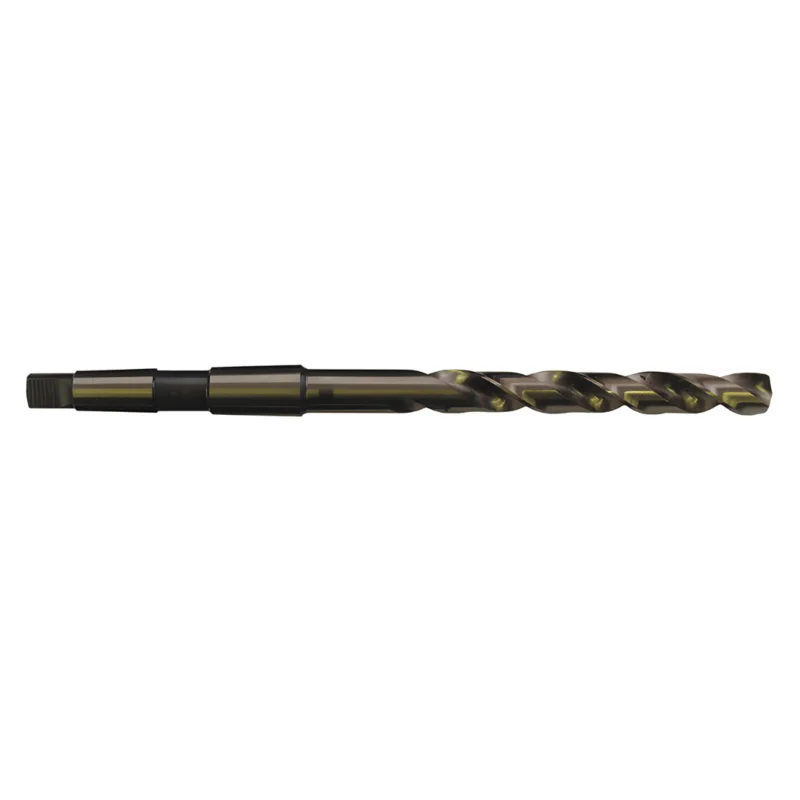

Cobalt Taper Shank Drills offer increased hardness, toughness and better wear resistance compared to regular HSS
Gold Oxide surface finish provides a polished finish and prevents chip building, galling and welding on a workpiece
135 Notched Point
Made to fit American Standard (Morse) taper shank holders
Ideal for tough, high tensile strength steels and stainless steels
Substrate: Cobalt
Surface Treatment: Bronze
Flute Type: Regular Spiral
| Accusize SKU# | FRAC (inch) | MTS (inch) | DEC (inch) | FLT (inch) | OA (inch) |
| DR36-104C | 1-1/16 | 4 | 1.0625 | 6-5/8 | 12-5/32 |
| DR36-105C | 1-5/64 | 4 | 1.0781 | 6-7/8 | 12-1/2 |
| DR36-106C | 1-3/32 | 4 | 1.0938 | 6-7/8 | 12-1/2 |
| DR36-107C | 1-7/64 | 4 | 1.1094 | 7-1/8 | 12-3/4 |
| DR36-108C | 1-1/8 | 4 | 1.125 | 7-1/8 | 12-3/4 |
| DR36-109C | 1-9/64 | 4 | 1.1406 | 7-1/4 | 12-7/8 |
| DR36-110C | 1-5/32 | 4 | 1.1562 | 7-1/4 | 12-7/8 |
| DR36-111C | 1-11/64 | 4 | 1.1719 | 7-3/8 | 13 |
| DR36-112C | 1-3/16 | 4 | 1.1875 | 7-3/8 | 13 |
| DR36-113C | 1-13/64 | 4 | 1.2031 | 7-1/2 | 13-1/8 |
| DR36-114C | 1-7/32 | 4 | 1.2188 | 7-1/2 | 13-1/8 |
| DR36-115C | 1-15/64 | 4 | 1.2344 | 7-7/8 | 13-1/2 |
| DR36-116C | 1-1/4 | 4 | 1.25 | 7-7/8 | 13-1/2 |
| DR36-117C | 1-17/64 | 4 | 1.2656 | 8-1/2 | 14-1/8 |
| DR36-118C | 1-9/32 | 4 | 1.2812 | 8-1/2 | 14-1/8 |
| DR36-119C | 1-19/64 | 4 | 1.2969 | 8-5/8 | 14-1/4 |
| DR36-120C | 1-5/16 | 4 | 1.3125 | 8-5/8 | 14-1/4 |
| DR36-121C | 1-21/64 | 4 | 1.3281 | 8-3/4 | 14-3/8 |
| DR36-122C | 1-11/32 | 4 | 1.3438 | 8-3/4 | 14-3/8 |
| DR36-123C | 1-23/64 | 4 | 1.3594 | 8-7/8 | 14-1/2 |
| DR36-124C | 1-3/8 | 4 | 1.375 | 8-7/8 | 15-7/8 |
| DR36-125C | 1-25/64 | 4 | 1.3906 | 9 | 14-5/8 |
| DR36-126C | 1-13/32 | 4 | 1.4062 | 9 | 14-5/8 |
| DR36-127C | 1-27/64 | 4 | 1.4219 | 9-1/8 | 14-1/4 |
| DR36-128C | 1-7/16 | 4 | 1.4375 | 9-1/8 | 14-1/4 |
| DR36-129C | 1-29/64 | 4 | 1.4531 | 9-1/4 | 14-7/8 |
| DR36-130C | 1-15/32 | 4 | 1.4688 | 9-1/4 | 14-7/8 |
| DR36-131C | 1-31/64 | 4 | 1.4844 | 9-3/8 | 15 |
| DR36-132C | 1-1/2 | 4 | 1.5 | 9-3/8 | 16-3/8 |
