Description
Universal Tool Grinder
- Advanced End mill end and flute grinder with corner radius
- Dial shaft 82mm 350W, 400-4000 RPM variable speed DC motor
- Ready-to-use. Includes Digital Read Out, aluminum oxide grinding wheel and manual
- You can choose to get the CM-01P without the Digital Read Out from the drop-down options above the “add to cart” button
Additional Info of CM-01P

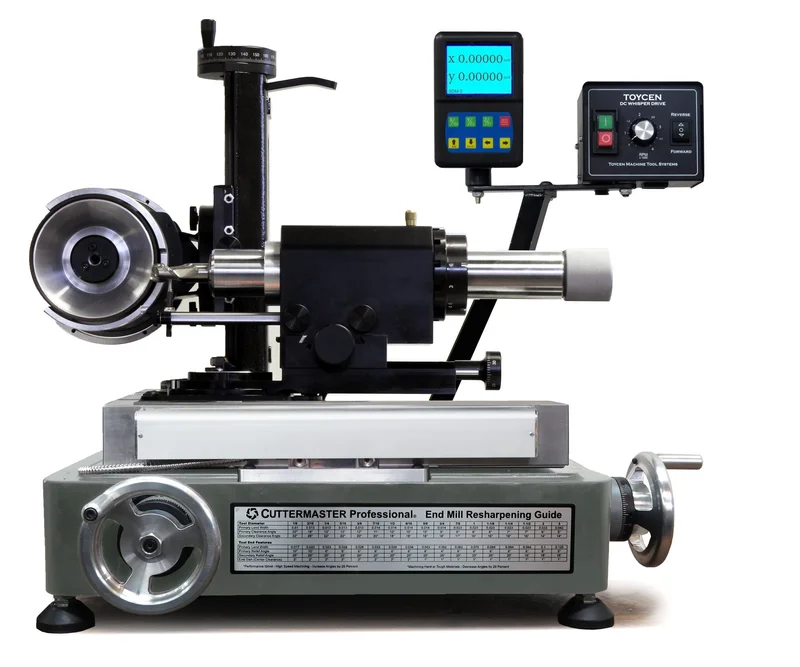

The CUTTERMASTER Professional Advanced Tool Maker has been designed to get the job done. Easy to use and fast to set up with the dual wheel, variable speed, reversing DC motor head. Ideal for tool making, regrinding or tool modifications (switch between wheel types on the fly)
- Infinitely positionable twin motor tower
- Radius air bearing for sharpening bull nose and ball nose end mills
- Sharpen end mill ends, flutes, inside roughers, annular cutters, HSS and carbide cut off.
- Grind flat set screw flats and neck reductions.
- Attachments for countersinks, step drills, flats, necks and more
CM-01P Specifications
| Air Bearing Stroke | 6.5″ |
| Air Bearing Collet | Standard 5C |
| Cutting Tool Capacity | 2 shank, 9.8 O.D. |
| Flute Length | 10.5 |
| Working Space / Travel | 0.8 x 0.5 x 0.67 |
| X-Axis Table Size | 16.5″ (419.1 mm) x 5.5″ (139.7 mm) |
| Y-Axis Table Size | 13″ (330.2 mm) x 5.5″ (139.7 mm) |
| Tool Grinding Wheel | Any |
| Motor Tilt | Infinite |
| Motor | 400 – 4000 RPM, 500 W |
| Net Weight | 188lbs (82kg) |
| Gross Weight | 232lbs (106kg) |
| Machine Dimensions Excluding Handles | 21″ x 20″ x 21″ |
| Shipping Dimensions | 30″ x 28″ x 29″ |
