Description

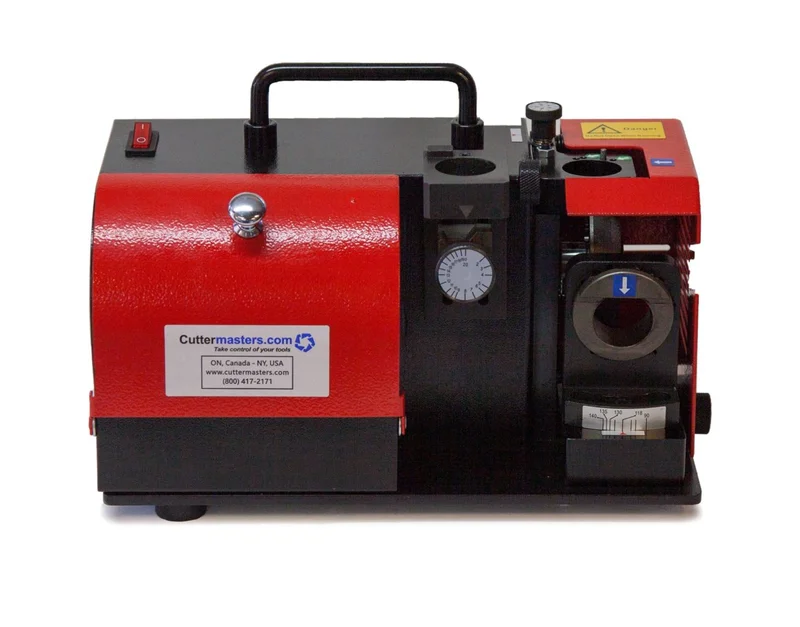

Drill Point Grinder 1/16″ to 1/2″ (2-13mm)
- Conventional helical tip or Back split (center cutting)
- Quiet Powerful DC motor
- Creates 90 to 140 point angle
- Creates variable split point geometry S / N / X and XR
- Adjustable depth-of-cut for split point geometry
- Industrial quality GE grinding wheel
- Grind both HSS and carbide drills (with additional wheel)
- Includes 10pc ER20 collet set
Specifications
| Drill Diameter | 1/16″to 1/2″ |
| Power Supply | AC 110V 50/60Hz, AC 220V(Opt.) |
| R.P.M of Motor | 5300 |
| Grinding Wheel | 140 grit |
| Weight | N.W 10Kg G.W 16Kg |
| Machine Size | L 300mm, W 165mm, H 245mm |
| Packing Size | L 380mm W 245mm, H 325mm |
| Standard Accessories | Collet x 17 pcsBushings x 6 pcsChuck Set: 3 sets (6 pcs)Hexagon Wrench 3mm x 1pcs / 4mm x 1 pcs
* Optional Grinding Wheel CBN or Diamond |
These drill grinders are not the look-alike grinders that can be found on eBay and Alibaba. Cuttermasters grinders are tested in North America, CE approved and covered by our manufacturers warrantee. The wheels are the bottom line, if the wheels are no good the machine is no good. Our wheels are produced using General Electric abrasive media under strict conditions to ensure long life and in some cases are designed by Cuttermasters in North America.
- Precision assurance within 0.02mm
- Creates center cutting geometry
- High accuracy balance of tip geometry
- Easy to operate, grinding tools within 1 minute
- High accuracy steel alloy collets
- High efficiency DC motor
- Industrial quality GE grinding wheel
- Portable
