Description

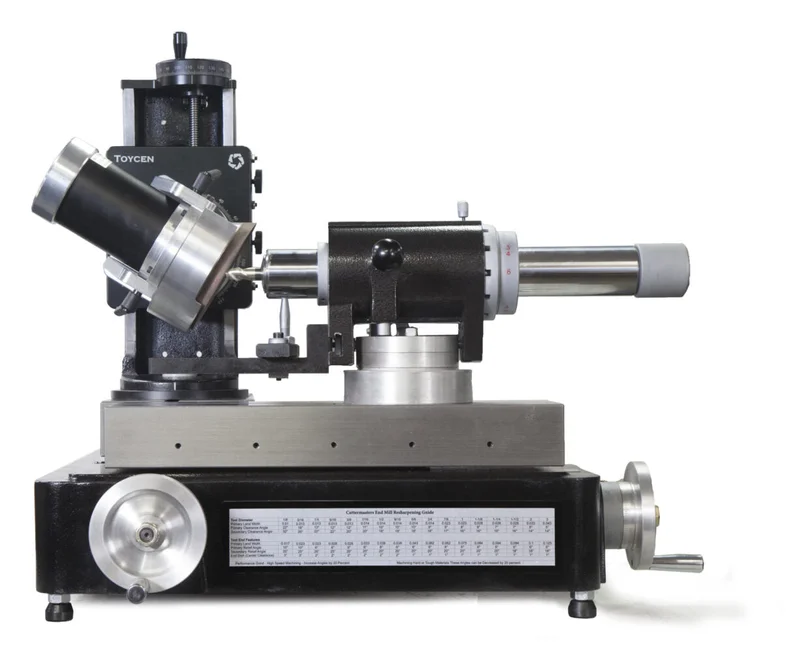

Journeyman JXT
- Advanced End mill end and tool grinder
- 77mm 350W, 400-4000 RPM variable speed DC motor
- Ready-to-run comes with Light , Machine cover and manual
- Digital package available for Precision radius grinding (.001)
- DRO not included
More about the Journeyman JXT
Easy to use and fast to set up, it features a single wheel, variable speed, reversing DC motor head. Ideal for tool making, tool sharpening or tool modifications.
- Infinitely positionable single motor tower
- Sharpen end mill ends, flutes, inside roughers and annular cutters
- Grind flat set screw flats, neck reductions
- HSS and carbide cut off
- Attachments for countersinks, step drills and more
JXT Operations
- Grind ends and flutes (primary and secondary grinds) 1/8?to 2?diameter
- Grind corner radiuses: bull nose and ball nose, primary and secondary grinds
- Reduce the neck diameter of your tools
- Cut off your tools
- Grind Perfect Weldon flats in your tools (grind set screw flat on carbide end mill shank)
- End gash your tools
- Grind annular cutters
- Cylinder grind small rounds
- Grind countersinks, step drills, hoggers, finishers, and reamers
Specifications
| Air Bearing Stroke | 6.5 up to 10.5″(266.7mm) |
| Air Bearing Collet | Standard 5C |
| Cutting Tool Capacity | 2″ shank, 9.8″ O.D. |
| Flute Length | 6.5″ up to 10.5″ |
| T-Slot Dimension | 0.8″(20.32mm) x 0.5″(12.7mm) x 0.67″(17.018mm) |
| Table Feed Gradations | 0.001″ (0.02mm) |
| X-Axis Table Travel | 6″ (152.4mm) |
| Y-Axis Table Travel | 3″ (76.2mm) + sildes back & forth 6″ (152.4mm) |
| X-Axis Table Working Space | 16.5″(419.1mm) x 5.5″(139.7mm) |
| Y-Axis Table Working space | 13″(330.2) x 5.5″(139.7) |
| Z- Axis Tower | 5″ Travel Dovetail Gib Assembly |
| Motor Tilt | +90 -8 |
| Motor and Wheel Mount | 130V DC 400 watts PM Brushed Commutation 1-1/4 Hub |
| Net Weight | |
| Gross Weight | 232lb (106Kg) |
| Machine Dimensions excluding handles | 21″x 20″x 21″ |
| Shipping Dimensions | 30″x 28″x 29″ 200lbs |
