Description

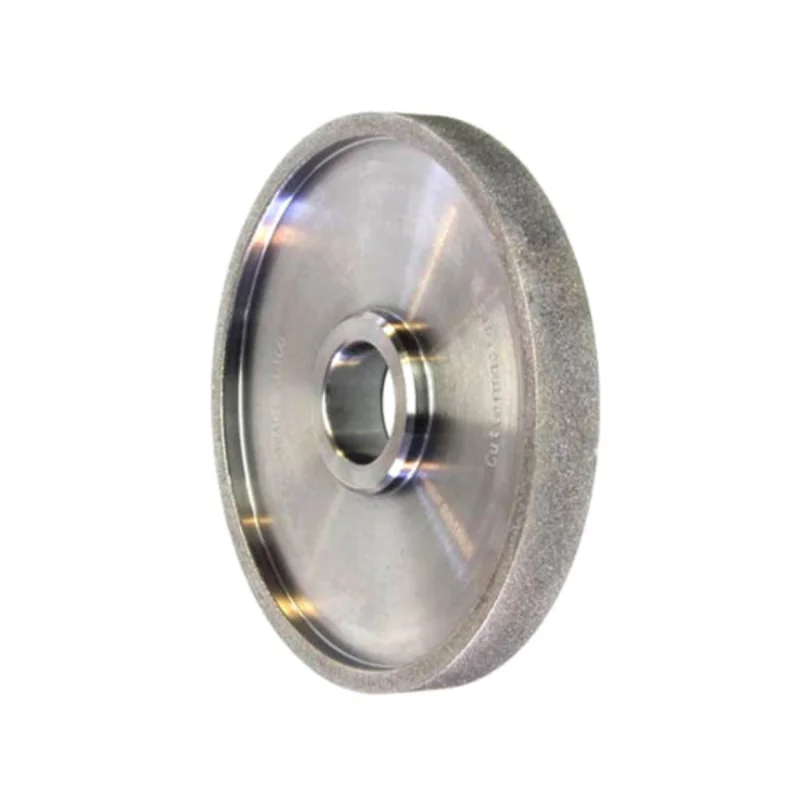

DAREx M3 or M5 Replacement Wheel
- Cuttermasters DAREx Diamond Replacement Grinding Wheels
- 6″ x 3/4″ x 1-1/4″ arbor (5/8″ bushing available)
- Diamond
- 100 grit
- For DAREx M3 or M5
- Bushings for 5/8″ arbor available
DAREx M3 or M5 Replacement Wheel – Diamond 100
- Overstock discount while supply lasts
- Diamond for carbide tools
- Generally 100 grit is better for the deeper split point cut and the 180 provides a better finish for a sharp cutting lip.
- These are very accurate wheels with more grit and better shape than the stock DAREx wheels
- Cuttermasters Diamond Wheels last 2 to 3 times longer than the Darex plated wheels
- There is virtually no dust and the wheel maintains a sharp corner producing accurate Tip Geometry and a good center when point splitting
- 6 Diameter X 3/4 Width X 1-1/4 Arbor
DAREx M3 AND M5 Equivalent Wheel Numbers
- PP04863GF CBN 100, Cuttermasters CM-M5C100
- PP04862GF CBN 180, Cuttermasters CM-M5C180
- PP04858GF Diamond 100, Cuttermasters CM-M5D100
- PP04857GF Diamond 180, Cuttermasters CM-M5D180
| DAREx Part Number | Grit Medium | Grit Size | Diameter | Width | Arbor | Cuttermasters Part Number |
|---|---|---|---|---|---|---|
| PP04863GF | CBN | 100 | 6 | 3/4″ | 1-1/4″ | CM-M5C100 |
| PP04862GF | CBN | 180 | 6 | 3/4″ | 1-1/4″ | CM-M5C180 |
| PP04858GF | Diamond | 100 | 6 | 3/4″ | 1-1/4″ | CM-M5D100 |
| PP04857GF | Diamond | 180 | 6 | 3/4″ | 1-1/4″ | CM-M5D180 |
