Description

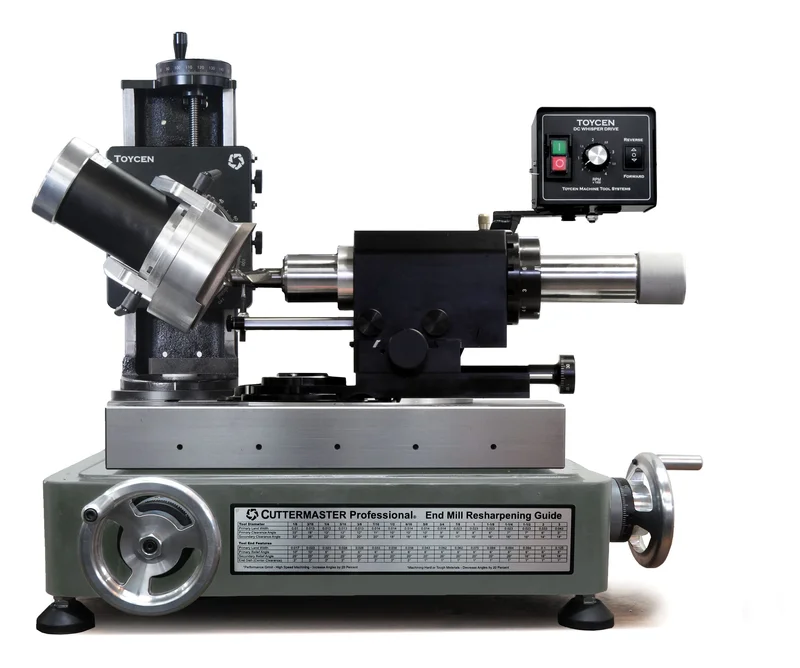

Journeyman Tower Corner Radius
- Advanced End mill / tool grinder, bull nose and ball nose
- 82mm 350W, 400-4000 RPM variable speed DC motor
- Ready-to-run. Includes aluminum oxide grinding wheel and manual
- Choice to include a DRO from the drop-down menu above the “add to cart” button
More About the JXTR
This grinder is the JXT with the Toycen Radius Air Bearing for end mill ends, flutes and corner radius. Easy to use and fast to set up, it features a single wheel, variable speed, and a reversing DC motor head. Ideal for tool making, tool sharpening or tool modifications.
- Infinitely positionable single motor tower
- Radius air bearing for sharpening bull nose and ball nose end mills
- Sharpen end mill ends, flutes, inside roughers and annular cutters
- Grind flat set screw flats and neck reductions
- HSS and carbide cut off
- Attachments for countersinks, step drills and more
Specifications
| Air Bearing Stroke | 6.5″ (10.5″ optional) |
| Air Bearing Collet | Standard 5C |
| Cutting Tool Capacity | 2 shank, 9.8 O.D. |
| Flute Length | 10.5 |
| Working Space / Travel | 0.8″ x 0.5″ x 0.67″ |
| x-Axis Table Size | 16.5″ x 5.625″ table |
| y-Axis Table Size | 16.5″ x 5.625″ table |
| Tool Grinding Wheel | Any. Arbor 5/8, 1-1/4 |
| Motor Tilt | Infinite |
| Motor | 400 – 4000 rpm, 500 W |
| Net Weight | 180lbs (82Kg) |
| Gross Weight | 232lb (106Kg) |
| Machine Dimensions excluding handles | 21 x 20 x 21 |
| Shipping Dimensions | 30 x 28 x 29, 200lbs |
