Description
MillMaster
- End Mill End and Flute Grinder
- 350W, 400-4000 RPM variable speed DC motor
- Ready-to-run. Includes aluminum oxide grinding wheel and manual

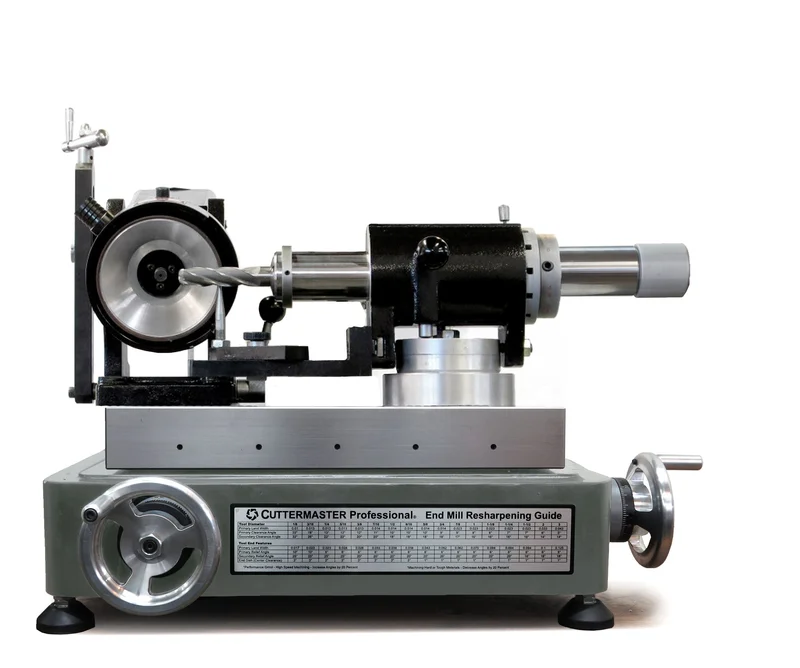

More About the CM-01V
The tried and true CM-01V is designed to be easy to set up and easy to use when grinding and re-grinding modern cutting tool materials and geometries.
- DC variable speed motor is positional 360 degree
- Roller burnished air bearing
- Sharpen end mill ends and flutes
- Attachments for countersinks, step drills and more
End Mill Grinding Demonstration on a CM-01DC / JX
CM-01 (CM-01V) Specifications
| Air Bearing Stroke | 6.5 (10.5 optional) |
| Air Bearing Swing Over Table | 9.8 (248.92) |
| Cutting Tool Capacity | 2 shank, 9.8 O.D. |
| Flute Length | 6.5 Standard or 10 inch |
| T-Slot Dimension | 0.8 (20.32mm) x 0.5 (12.7mm) x 0.67 (17.018mm) |
| Table Feed Gradations | 0.001 (0.02mm) |
| X-Axis Table Travel | 6 (152.4mm) |
| Y-Axis Table Travel | 3 (76.2mm) + sildes back & forth 6 (152.4mm) |
| X-Axis Table Working Space | 16.5 (419.1mm) x 5.5 (139.7mm) |
| Y-Axis Table Working space | 13 (330.2) x 5.5 (139.7) |
| Wheel | 5 x 1.25 cup or 6 dish with Z-axis |
| Motor Tilt | +35 -8 |
| Power /Motor | 110v / 60Hz or 220v 50Hz 350W, 3800 rpm, DC PM Rev |
| Net Weight | 180lbs (82Kg) |
| Gross Weight | 232lb (106Kg) |
| Machine Dimensions excluding handles | 21 x 20 x 21 |
| Shipping Dimensions | 30 x 28 x 29, 230lbs |
