Description
Features:

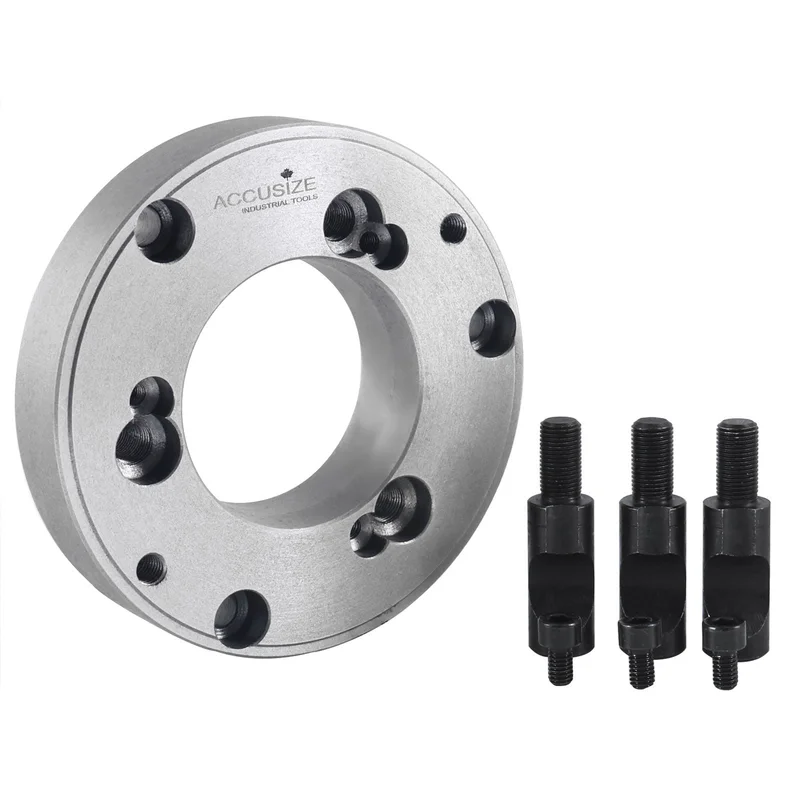

– D1 type adaptor for most 3-jaw, 6-jawplain back chucks.
– Direct mounting on camlock spindle noses.
– The back plate shoulder requires machining.For instructions on truing back plate.
| SKU | DI TYPE ADAPTORS | Spindle Taper | A | C | D | For self-centering chucks | For independent chucks | ||||
| E | F(countersunk) | G | E | F(thread) | G | ||||||
| 2600-0517 | D1-3, 5″ | D1-3 | 5″ | 2.12″ | 2.77″ | 3.77″ | 4.25″ | 0.12″ | 3.77″ | 4.25″ | 0.12″ |
| 2600-0518 | D1-3, 6″ | D1-3 | 6″ | 2.12″ | 2.77″ | 5.15″ | 5.59″ | 0.16″ | 2.13″ | 2.80″ | 0.16″ |
| 2600-0510 | D1-4, 5″ | D1-4 | 5″ | 2.50″ | 3.25″ | 3.77″ | 4.25″ | 0.12″ | 3.77″ | 4.25″ | 0.12″ |
| 2600-0511 | D1-4, 6″ | D1-4 | 6″ | 2.50″ | 3.25″ | 5.15″ | 5.59″ | 0.16″ | 2.13″ | 2.80″ | 0.16″ |
| 2600-0512 | D1-4, 8″ | D1-4 | 8″ | 2.50″ | 3.25″ | 6.54″ | 7.09″ | 0.16″ | 2.99″ | 3.74″ | 0.20″ |
| 2600-0513 | D1-6, 8″ | D1-6 | 8″ | 4.19″ | 5.25″ | 6.54″ | 7.09″ | 0.16″ | 2.99″ | 3.74″ | 0.20″ |
| 2600-0515 | D1-5, 8″ ( 3/4″ Dia. Stud. ) | D1-5 | 8″ | 3.25″ | 4.13″ | 6.54″ | 7.09″ | 0.16″ | 2.99″ | 3.74″ | 0.20″ |
