Description

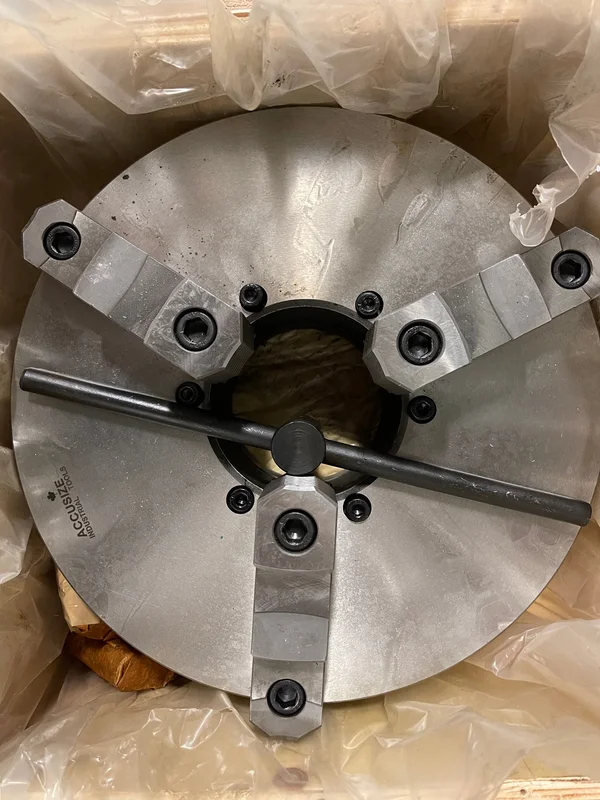

NOT A BRAND NEW CHUCK BUT A DEMO ONE —- USED TO DISPLAY, HAS SCRATCHES ON THE SURFACE AND WRENCH.
Two-Piece Reversible Jaws 3-Jaw Lathe Chuck, Direct Mount
- ” D1″ Series (Direct Mounting) Chuck.
- Hardened and ground two-piece reversible jaws
- Semi-steel body
- Complete with chuck key
- Standard accuracy
- Standard scroll
- Runout: 0.06mm / 0.0024″
Please note that the standard runout on the market is 0.08mm / 0.0031″
| Item | Diameter | Mount | Center Hole | D1 | D2 | D3 | H | H1 | h | z-d | Max Input Torque (Nm) | Max Speed(r/min) | Cam lock pin Dia | Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0559-0108 | 12″/315mm | D1-6 | 3.937″ | 4.188″ | 5.252″ | 3.937″ | 6.969″ | 4.409″ | 0.630″ | 6-M20 | 400 | 1500 | 7/8″ / 22.2mm | M16 x 1.5 |
CLAMPING RANGE / JAMMING RANGE FOR ACCUSIZE 2-PC REVERSIBLE JAW 3-JAW SELF-CENTERING CHUCKS WITH PLAIN BACKS, DIRECT MOUNT
| Item | Diameter | Mount | Inside Jaw | Outside Jaw | |
| Clamping range | Jamming range | Clamping range | |||
| A-A1 | B-B1 | C-C1 | |||
| 0559-0108 | 12″/315mm | D1-6 | 0.394″-5.511″/10-140mm | 3.740″-12.401″/95-315mm | 3.937″-12.401″/100-315mm |
