Description

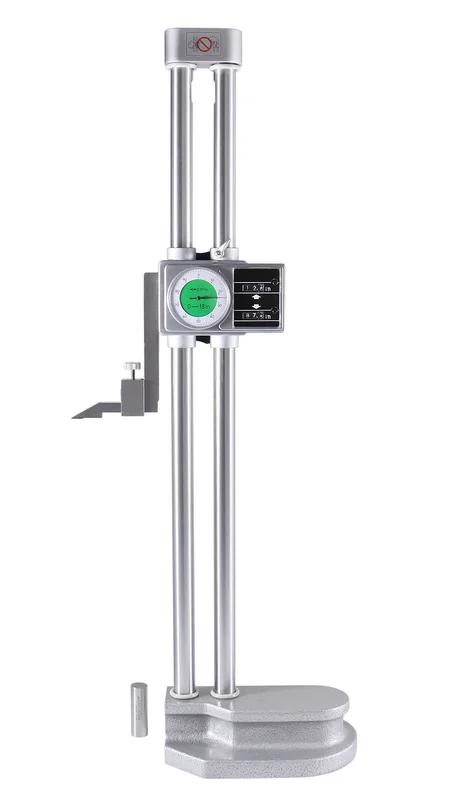

Double Beam Mechanical Digital Height Gage
- Gear driving, position precisely
- Handwheel gear-driven micro-adjust for easy and precise positioning.
- Easy and error-free reading with both up and down digital counters
- Can choose from purchase to revolve tightly solid device, tightly solid more convenient(order note)
- Furnished with a double digital counter for quick and easy upward and downward readings
- The dual directional counter can be zero set individually, and float zero points anywhere within the range
- The counter is graduated in .01”, while the dial is graduated in 0.001”
- Error-proof digital counter comes with a zero reset button
- The bottom surface of the base is hardened, ground and lapped for maximum flatness
- Fine adjusting wheel and lock
- Dial graduations – 0.001”( 0.01 mm)
| Item | Range | Resolution | Accuracy |
| DBHG-0012 | 0-12″/0-300 mm | 0.001″ | 0.002″ |
| DBHG-0018 | 0-18″/0-450 mm | 0.001″ | 0.002″ |
| DBHG-0024 | 0-24″/0-600 mm | 0.001″ | 0.002″ |
