Description

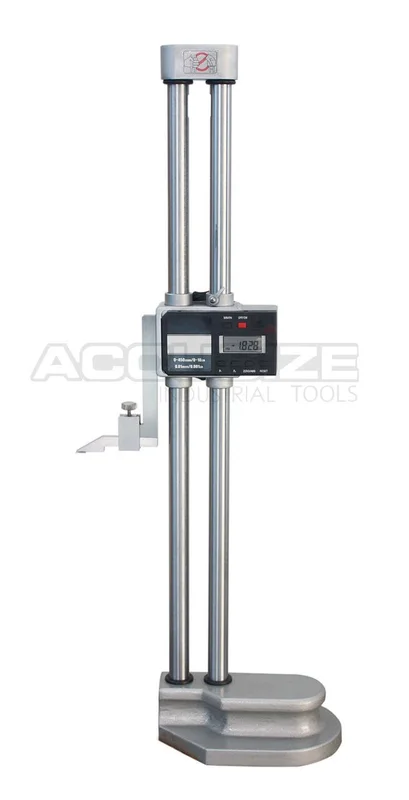

Electronic Digital Double Beam Height Gages
- Measuring range: 0-24″ (0-600 mm)
- Resolution: 0.001″ (0.01 mm)
- Repeatability: 0.01 mm
- Accuracy:
0-200mm: 0.03 mm
>200-400mm: 0.04 mm
>400-600mm: 0.05 mm - Handwheel drive for easy head displacement.
- Large LCD Display.
- Inch/mm conversion.
- On/off switch
- ABS/INC switchable and hold function.
- Adjustable tolerance markers with indication of display overflow or OK.
- Delivery complete with a scriber.
- Power supply: SR44.
| Item | Range | Resolution | Accuracy |
| EDBH-0012 | 0-12″/0-300mm | 0.001″/0.01mm | 0.0016″/0.04mm |
| EDBH-0018 | 0-18″/0-450mm | 0.001″/0.01mm | 0.002″/0.05mm |
| EDBH-0024 | 0-24″/0-600mm | 0.001″/0.01mm | 0.002″/0.05mm |
