Description

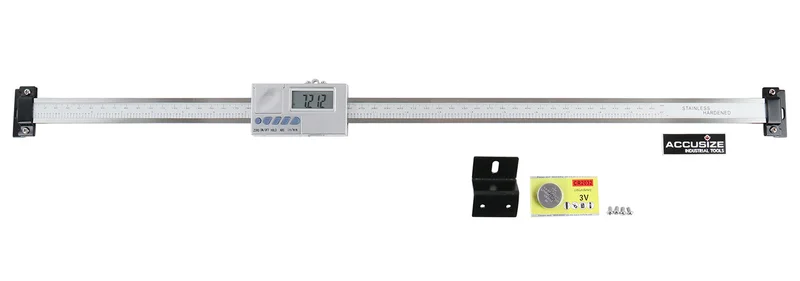

Electronic Digital DRO Scale Unit Horizontal
Features:
- Incremental capacitive system.
- Glass scale.
- Protection grade IP54.
- Manual power on/off.
- Inch/metric interchange at any position.
- Zero setting at any position
- Data output SPC0-AC01.
- Works with TM25-0000 LCD digital unit.
- Power supply: 3V CR2032, battery life > 1 year.
| Item | Description | Range | Resolution | Accuracy | Max. Measuring Speed | Manual |
| ABHO-0006 | Horizontal | 0-6″/0-150mm | 0.0005″/0.01mm | 0.02mm/0.001″ | 1.5m/s | Download |
| ABHO-0008 | Horizontal | 0-8″/0-200mm | 0.0005″/0.01mm | 0.03mm/0.0015″ | 1.5m/s | |
| ABHO-0012 | Horizontal | 0-12″/0-300mm | 0.0005″/0.01mm | 0.03mm/0.0015″ | 1.5m/s | |
| ABHO-0018 | Horizontal | 0-18″/0-450mm | 0.0005″/0.01mm | 0.05mm/0.002″ | 1.5m/s | |
| ABHO-0024 | Horizontal | 0-20″/0-500mm | 0.0005″/0.01mm | 0.05mm/0.002″ | 1m/s | |
| ABHO-0040 | Horizontal | 0-40″/0-1000mm | 0.0005″/0.01mm | 0.06mm/0.003″ | 1m/s |
