Description
Features:

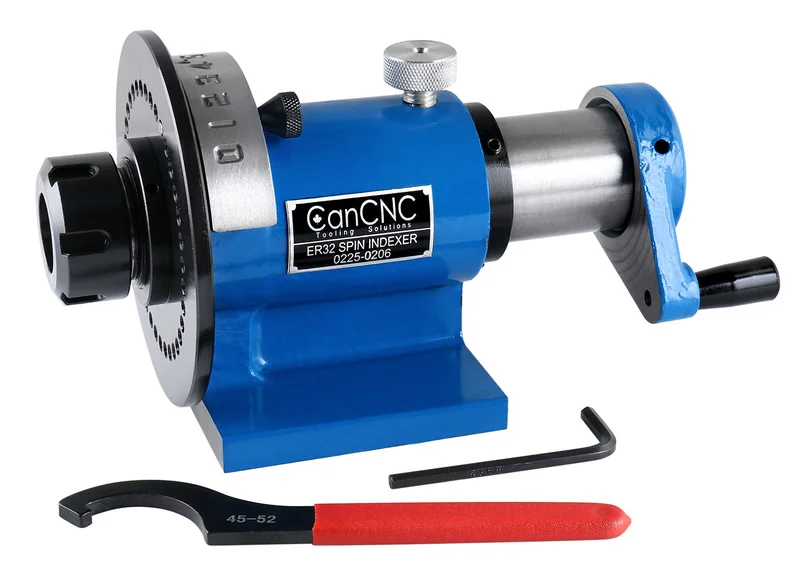

- Indexing and grinding fixture.
- Uses ER-32 collets (range 1/16″-13/16″) for better gripping and accuracy.
- Extends the capabilities of drill presses, surface grinders, gear cutters, and milling machines.
- Spindle hardened and ground with 0.0005″ (T.I.R.) run-out.
- 10 vernier holes for 1 indexing.
- 2″ spindle travel for flute grinding.
- 5″ diameter index plate has 36 hole circles and graduated from 0 to 35 for direct indexing in 10 steps and is marked in 5 increments.
- Spindle lock for tightening the collet.
- Base footprint: 4.5″x4″ ground parallel to the spindle.
- ER collet is not included and can be purchased separately.
Some operation examples
Machine the bottom of the 0225-0206 Spin Indexer
Mount 0225-0206 Spin Indexer on a milling table
Mill the sides of the bottom plates
After the bottom plates are milled, it will be a quick-mounting fixture on a machine vise.
Use a matching tailstock when machining a long workpiece
