Description

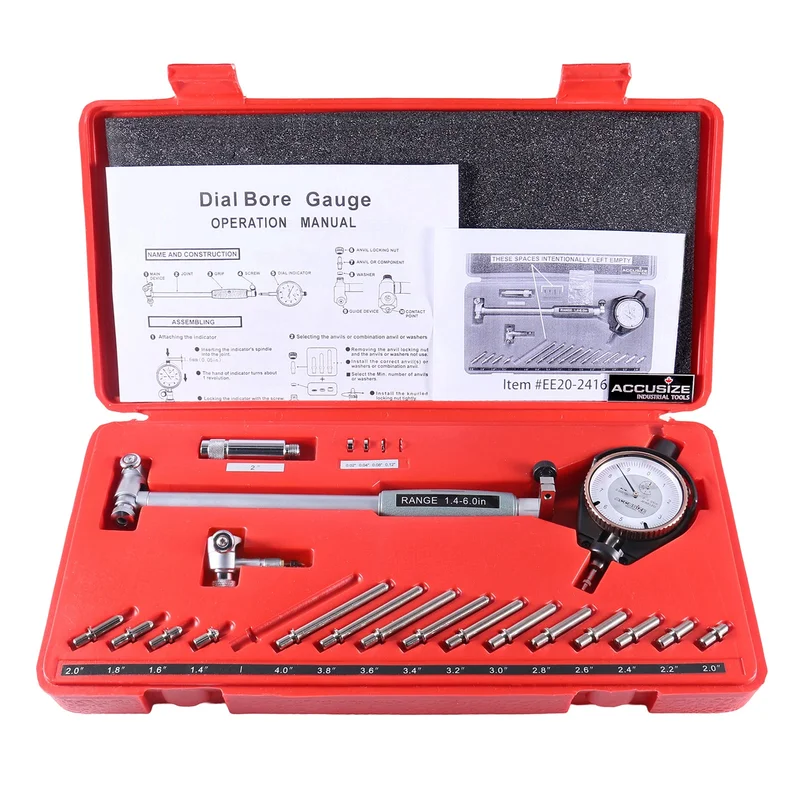

Extender Dial Bore Gage Set, 1.4 – 6″ Measuring Range
- Combining two most popular bore gage ranges into one set by interchangeable contact point head
- AGD group 2 dial indicator
- Self centering dial indicator is fully protected by a rugged cover
- Insulated grip with chrome-plated handle
- Stainless steel ball contact point for durability
- Indicating spacer and anvil sizes to select a specific range
- Dial bore gauge with Carbide-tipped contact points for extended wear and improved abrasion resistance
- Size 1.4 – 6″ with tolerance marker on the indicator
- Including 15 Anvils and 4 Spacers;
- Thickness of spacers:
- 0.02in / 0.5mm
- 0.04in /1.00mm
- 0.08in / 2.00mm
- 0.12in / 3.00mm
- Thickness of spacers:
- Easily adjustable with a bezel lock for zero setting
- Self-centering measuring heads, chrome-plated handle and includes extension holder and good quality fitted case
| Item | Range | Dial Indication |
| EE20-1406 | 1.4-6″ | 0-0.25″ x 0.0005″ |
| EE20-2416 | 1.4-6″ | 0-0.05″ x 0.0001″ |
