Description

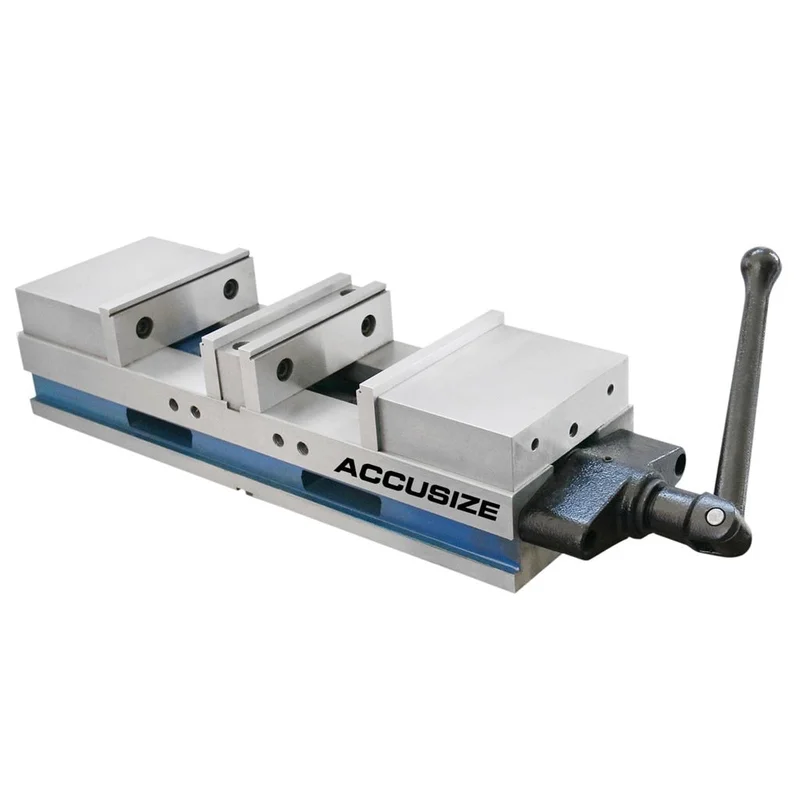

6″ Double Lock Angle Tight Precision Machine Vise with 2 Clamping Station, #FA42-1242
- Spheroidal cast iron body.
- Net weight: 103.4lbs.
- Jaw Width(a): 6″
- Jaw Opening(b & b1): 3.937″
- Jaw Depth(c): 1.968″
- Overall Length(L): 24.094″
- Width(w):6.299″
- Overall Height(h): 5.118″
- Clamping Force: 16,000 lbs
- Flatness: 0.001″
- Accuracy: both sides square to bottom: 0.0004″
- Parallel to each other: 0.0008
- Precision clamping force per jaw set.
- Precision ground on all sides, can be mounted vertically or horizontally.
- Reversible hardened jaw plates for standard or, stepped part holding.
- Top-mounted center block can be removed easily for larger parts application.
While it tightens, both jaws move. Also, it accepts different thickness/width parts.
