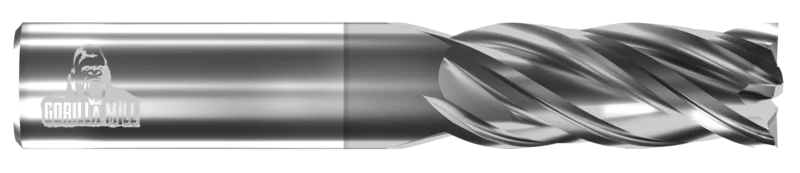

Gorilla 4 Flute Square End GMX-35 Coated End Mills, Inch, High Performance, Made in USA

Description

Gorilla 4 Flute Square End GMX-35 Coated End Mills, Inch, High Performance,

Made in USA.

• Patented variable flute and index design which reduces chatter and vibration.
• Recommended for aggressive machining applications in all materials including,
  stainless, inconel, titanium, tool steels and hardened materials. Should be run at specific parameters.
• Produced with the highest Transverse Rupture
• Strength (TRS) nano-grain carbide substrate available.

• Should be run at specific parameters. See Speeds and Feeds chart HERE.

Gorilla coatings:

• are just a few thousandths of a millimeter thick but harder than steel; these low-friction coatings are extremely wear-resistant and chemically inert. The optimum coating is determined on the basis of both conditions of use and economic considerations.

About the GMX-35 Coating:

Special high-performance coating for high speed machining. GMX-35 performance surpasses all conventional coatings. This universal high-performance coating is especially designed for milling and drilling. Also suitable for dry machining.

• Structure: Gradient
• Nanohardness (GPa): 32
• Friction (fretting) Coefficient: 0.35
• Thickness (m): 2-4
• Maximum Working Temperature: 1100 C (2012 F)
• Color: Silver-Gray

Cutting Materials:

• Gray Cast Iron, Ductile Iron, Soft Steels, (A36,1018, 8620,1045), Alloy Steels, (4340, 4140), 4140 Pre-Hard (38 to 42 Rc), Tool Steels (A2,D2,S7), Die Steels, (H13,P20), Stainless Steel, (303, 304, 316), Difficult Stainless Steel, (400 & PH Series), Stainless Steel (13-8), High Temperature Alloys, Titanium (6AL4V), Inconel 718, Inconel 625

Machining Method:

Tolerance:

• Cut Dia +.000/-.002,
• Shank Dia -.0001/-.0005,
• LOC +.025/+.050,
• OAL +/-.050


Dimensions:

STANDARD Tool Length
