Description

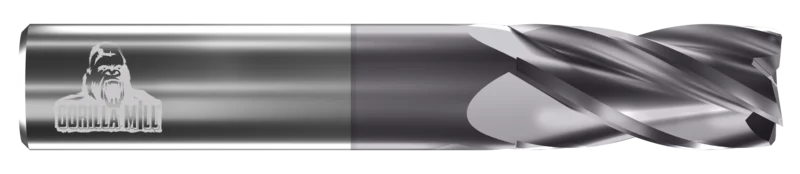

Gorilla Mill Primate Square End TiALN CoatedEnd Mill Serials. Standard Carbide End Mills.
Made in USA.
- Extremely versatile in various materials, center cutting, solid sub-micron carbide.
- Available in special diameters, lengths and completely resharpenable
- Should be run at specific parameters. See Speeds and Feeds chart HERE.
Gorilla coatings:
- are just a few thousandths of a millimeter thick but harder than steel; these low-friction coatings are extremely wear-resistant and chemically inert. The optimum coating is determined on the basis of both conditions of use and economic considerations.
About the TiALN Coating:
- Structure: Multilayer
- Nanohardness (GPa): 28
- Friction (fretting) Coefficient: 0.6
- Thickness (m): 2-4
- Maximum Working Temperature: 700 C (1290 F)
- Color: Violet
Cutting Materials:
- Aircraft Aluminum, (2000,5000, 7000 series), Soft Aluminum, (6061), Copper (200 Brinell ), Cast Aluminum (6% Silcon & <), Brass, Bronze, Gray Cast Iron, Soft Steels (A36, 1018, 8620, 1045), Alloy Steels (4340, 4140), Tool Steels (A2, D2, S7), Die Steels (H13, P20), Stainless Steel (303, 304, 316), Difficult Stainless Steel (400 & PH Series), High Temperature Alloys, Titanium (6AL4V)
Machining Method:
Tolerance:
- Cut Dia +.000/-.001,
- Shank Dia -.0001/-.0005,
- LOC +.025/+.050,
- OAL +/-.050
Dimensions:
| Accusize SKU | Gorilla Mill SKU | D1 Cutting Dia. |
D2 Shank Dia. |
LOC | OAL | Toolth Length | COATING |
| 0007-0676 | CEM164F4TiALN | 1/64 | 1/8 | 1/32 | 1-1/2 | STANDARD | TiALN |
| 0007-0514 | CEM132F4TiALN | 1/32 | 1/8 | 5/64 | 1-1/2 | STANDARD | TiALN |
| 0007-1108 | CEM364F4TiALN | 3/64 | 1/8 | 7/64 | 1-1/2 | STANDARD | TiALN |
| 0007-0325 | CEM116F4TiALN | 1/16 | 1/8 | 3/16 | 1-1/2 | STANDARD | TiALN |
| 0007-1297 | CEM564F4TiALN | 5/64 | 1/8 | 3/16 | 1-1/2 | STANDARD | TiALN |
| 0007-0967 |
