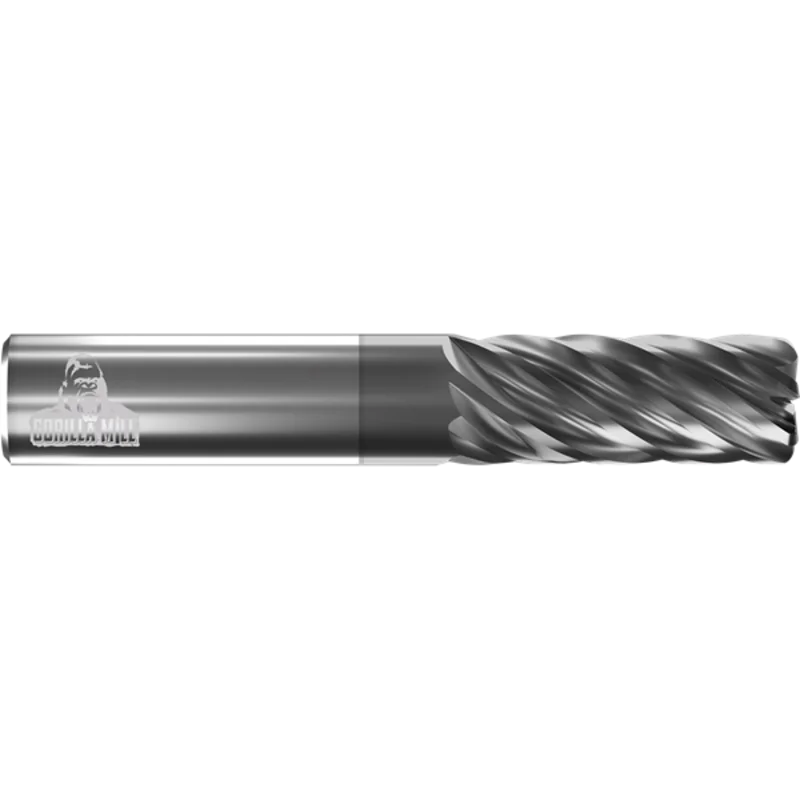

Gorilla 7 Flute Radius, WTF & GMS Coated End Mills, Inch, Super Bitchin’ Performance – Ferrous, Made in USA

Description

Gorilla Mill BABOON End Mill Serials. Made in USA.

7 Flute (INCH) RADIUS END, Super Bitchin’ Performance – Ferrous

• Variable flute and index design which reduces chatter and vibration.
• Recommended for aggressive machining applications in all materials.
• Produced with the highest Transverse Rupture Strength (TRS) nano-grain carbidesubstrate available.
• Available in special diameters, lengths and completely resharpenable.
• Based on the original 5 flute Gorilla Mill, the “Baboon” for High Temp Alloys features geometric enhancements that make it uniquely suited
  for difficult to machine materials.
• Should be run at specific parameters. See Speeds and Feeds chart HERE.

Available in GMS & WTF Coating

• GMS Coating: Revolutionary PVD coating process. GMS2 marksa breakthrough in PVD deposition technology.The performance and hardness stem from thecoating’s unique structure. GMS2 is specificallydesigned to punish high temp alloys.

  • Structure: Gradient
  • Nanohardness (GPa): 32
  • Friction (fretting) Coefficient: 0.3
  • Thickness (m): 2-4
  • Maximum Working Temperature: 1100 C(2012 F)
  • Color: Bright- Gray

• WTF Coating: High-end coating solution that offers superior oxidation resistance, high thermal stability, and exceptional wear resistance, making it perfect for machining challenging materials such as titanium, nickel-based alloys and stainless and hardened steel.
  • Structure: Multilayer
  • Nanohardness (GPa): 38
  • Friction (fretting) Coefficient: 0.6
  • Thickness (m): 2-4
  • Maximum Working Temperature: 1100 C(2012 F)
  • Color: Bronze

Cutting Materials:

• Gray Cast Iron, Ductile Iron, Soft Steels, (A36,1018, 8620,1045), Alloy Steels, (4340, 4140), 4140 Pre-Hard (38 to 42 Rc), Tool Steels (A2,D2,S7), Die Steels, (H13,P20), Stainless Steel, (303, 304, 316), Difficult Stainless Steel, (400 & PH Series), Stainless Steel (13-8), High Temperature Alloys, Titanium (6AL4V), Inconel 718, Inconel 625

Machining Method:

Tolerance:

• TOLERANCES (inch)
• Cut Dia +.000/-.002
• Shank Dia -.0001/-.0005
• LOC +.025/+.050
• OAL +/-.050

Dimensions:
