Description

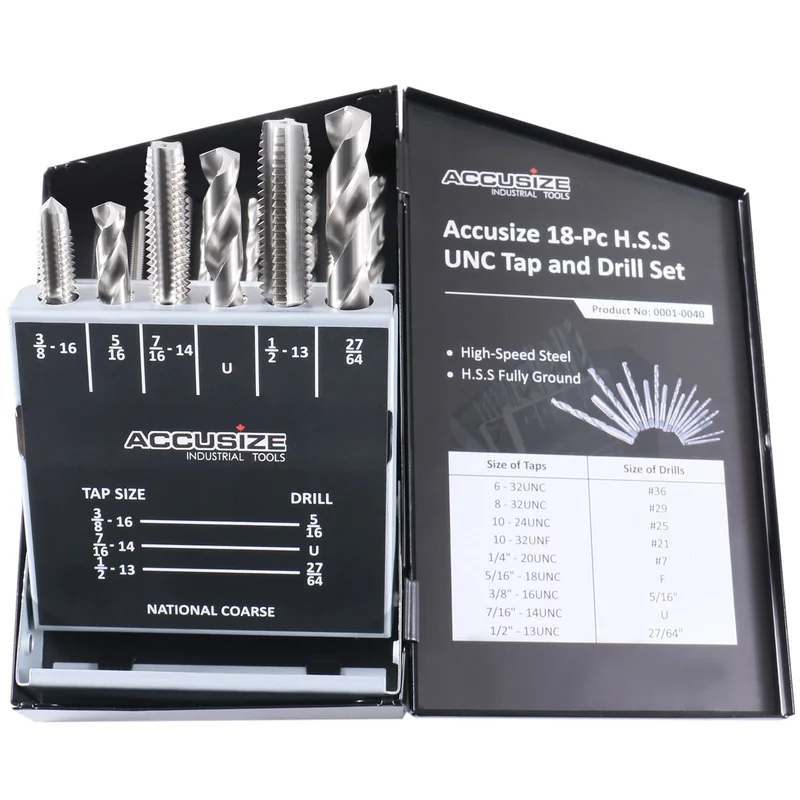

H.S.S. Tap & Drill Sets (UNF, UNC and Metric)
- HSS Fully Ground
- High Quality
- No guesswork in deciding what size hole to drill for tap. The correct drill bit comes with each tap in a sturdy Metal case.
- Includes the Following 3 Different Sets
- ANSI standard.
- Ground from solid high speed steel.
- Organizes 9pcs taps with the 9pcs corresponding jobber length drills.
- General purpose for use in ferrous and non-ferrous material.
- In a fitted metal index.
| Item | Description |
| 0001-0040 | 18pcs/set UNC Taps & Drills Set |
| 0001-0050 | 18pcs/set UNF Taps & Drills Set |
| 0001-0052 | 18pcs/set Metric Taps & Drills Set |
For 0001-0040:
| Size of Taps | Size of Drills |
| 6-32UNC | #36 |
| 8-32UNC | #29 |
| 10-24UNC | #25 |
| 10-32UNF | #21 |
| 1/4″-20UNC | #7 |
| 5/16″-18UNC | F |
| 3/8″-16UNC | 5/16″ |
| 7/16″-14UNC | U |
| 1/2″-13UNC | 27/64″ |
For 0001-0050:
| Size of Taps | Size of Drills |
| 6-40UNF | #33 |
| 8-36UNF | #29 |
| 10-24UNC | #25 |
| 10-32UNF | #21 |
| 1/4″-28UNF | #3 |
| 5/16″-24UNF | I |
| 3/8″-24UNF | Q |
| 7/16″-20UNF | 25/64″ |
| 1/2″-20UNF | 29/64″ |
For 0001-0052:
| Size of Taps | Size of Drills |
| M2.5X0.45 | 2.05mm |
| M3.0X0.50 | 2.50mm |
| M3.5X0.60 | 2.90mm |
| M4.0X0.70 | 3.30mm |
| M5.0X0.80 | 4.20mm |
| M6.0X1.00 | 5.00mm |
| M8.0X1.25 | 6.70mm |
| M10.0X1.50 | 8.50mm |
| M12.0X1.75 | 10.20mm |
