Description

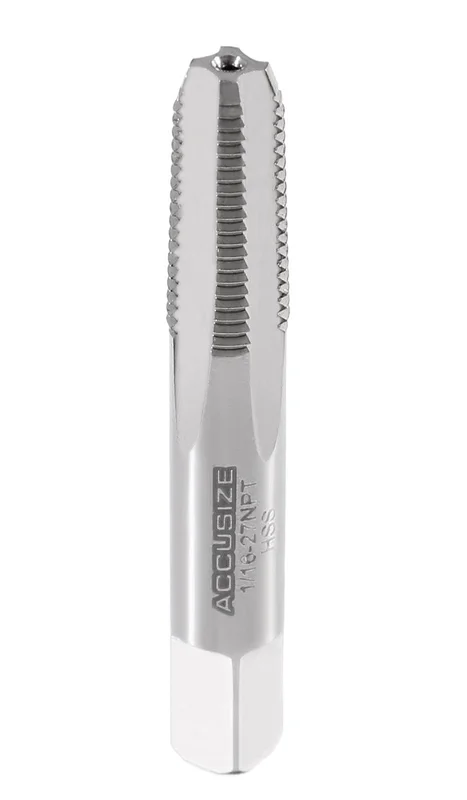

H.S.S. Taper Pipe Taps-NPT
- American standard
- Fully Ground
- ANSI standard.
- Ground from high speed steel.
- Designed for the internal threading of pipe fittings and pips.
- General purpose taps.
| Item | Description | Flute | Thread Length | Shank Diameter |
Overall Length |
| NPT-116 | 1/16″-27 | 4 | 11/16” | 0.3125″ | 2-1/8” |
| NPT-18 | 1/8″-27 | 4 | 3/4” | 0.4375″ | 2-1/8” |
| NPT-14 | 1/4″-18 | 4 | 1-1/16” | 0.5625″ | 2-7/16” |
| NPT-38 | 3/8″-18 | 4 | 1-1/16” | 0.7000″ | 2-9/16” |
| NPT-12 | 1/2″-14 | 4 | 1-3/8” | 0.6875″ | 3-1/8” |
| NPT-34 | 3/4″-14 | 5 | 1-3/8” | 0.9063″ | 3-1/4” |
| NPT-1 | 1″-11-1/2 | 5 | 1-3/4” | 1.1250″ | 3-3/4” |
| NPT-1-14 | 1-1/4″-11-1/2 | 5 | 1-3/4” | 1.3125″ | 4” |
| NPT-1-12 | 1-1/2″-11-1/2 | 7 | 1-3/4” | 1.5000″ | 4-1/4” |
| NPT-2 | 2″-11-1/2 | 7 | 1-3/4” | 1.8750″ | 4-1/2” |
| NPT-2-12 | 2-1/2″-8 | 8 | 2-9/16” | 5-1/2” | |
| NPT-3 | 3″-8 | 8 | 2-5/8” | 6” |
