Description

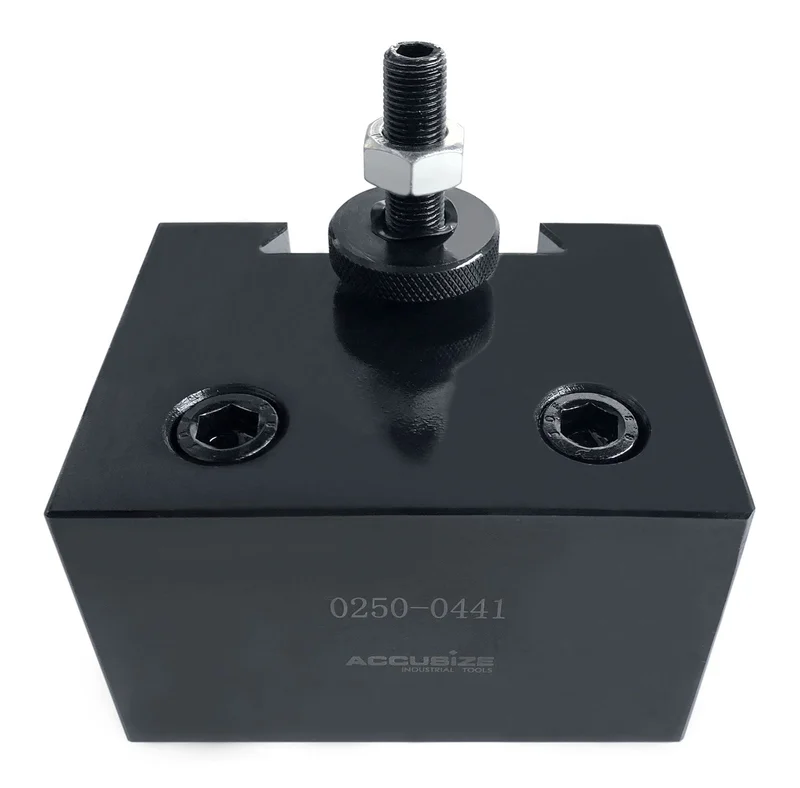

Heavy Duty Boring Bar Holders #4
- Equipped with a split bushing to accommodate a boring bar of a smaller diameter.
- It grips with extreme rigidity, cuts smoothly without chatter.
- Made of Steel
| Item | Model | A | B | D | D1 | L1 | L2 | H |
| 0250-0104 | AXA | 3/4″ | 1-1/2″ | 3/4″ | 5/8″ | 1.691″ | 1.250″ | 0.382″ |
| 0250-0204 | BXA | 7/8″ | 1-3/4″ | 1″ | 3/4″ | 1.761″ | 1.265″ | 0.409″ |
| 0250-0304 | CXA | 1″ | 2″ | 1″ | 3/4″ | 2.208″ | 1.567″ | 0.555″ |
| 0250-0404 | CA | 1-1/4″ | 2-1/2″ | 1-1/4″ | 1″ | 2.663″ | 2.100″ | 0.488″ |
| 0250-0141 | AXA | 7/8″ | 1-3/4″ | 1″ | 3/4″ | 1.691″ | 1.250″ | 0.382″ |
| 0250-0241 | BXA | 1″ | 2″ | 1-1/4″ | 1″ | 1.761″ | 1.265″ | 0.409″ |
| 0250-0341 | CXA | 1-1/8″ | 2-1/4″ | 1-1/4″ | 1″ | 2.208″ | 1.567″ | 0.555″ |
| 0250-0441 | CA | 1-3/8″ | 2-3/4″ | 1-1/2″ | 1-1/4″ | 2.663″ | 2.100″ | 0.488″ |
